Backplane configuration for 4 drives
This information covers the supported backplane configuration for 4 drives.
About this task

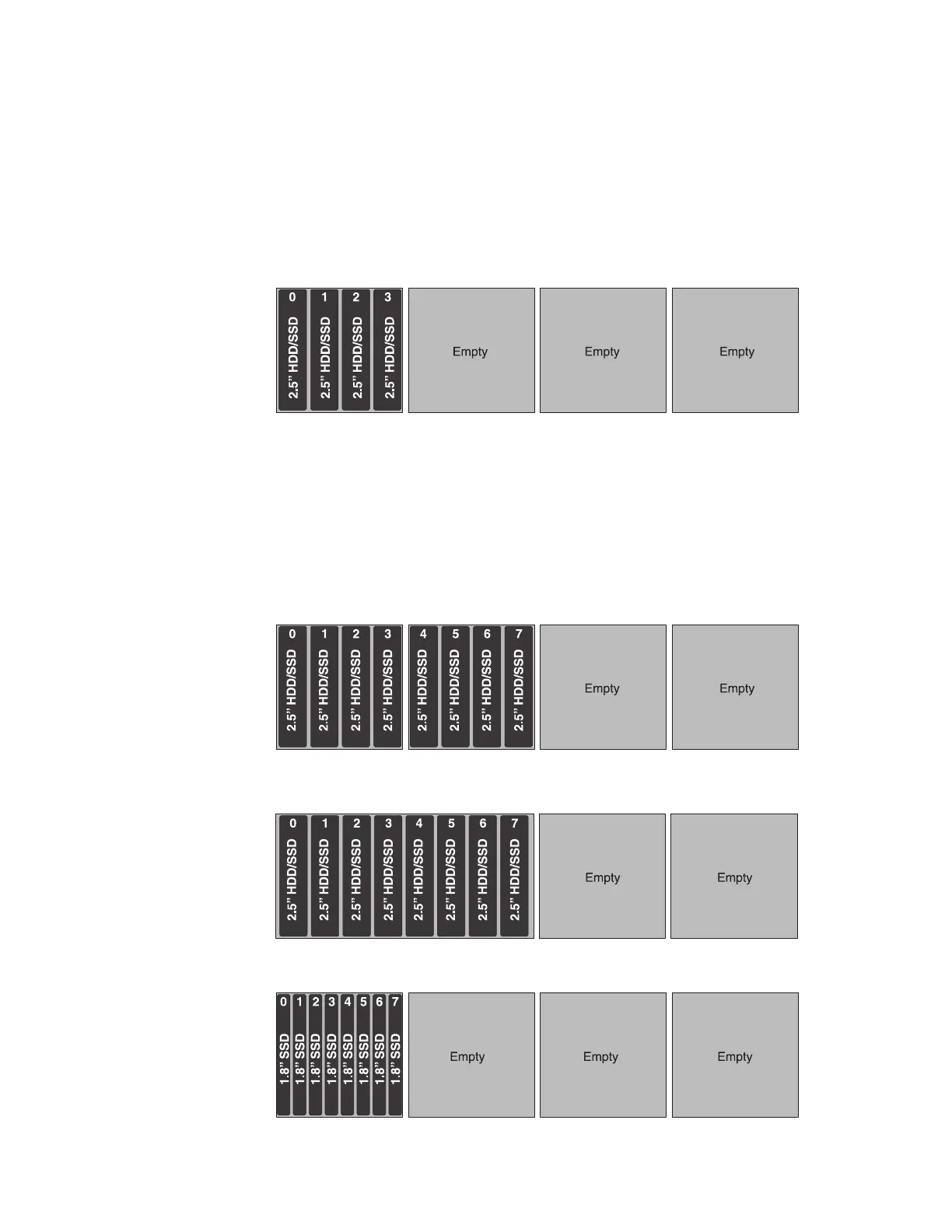

The following illustration shows the supported backplane configuration to support
four drives.
This configuration consists of one 4x2.5-inch drive backplane and requires one
SAS signal cable.
Backplane configurations for 8 drives
This information covers the supported backplane configurations for 8 drives.
About this task
The following illustrations show the supported backplane configurations to
support eight drives.
This configuration consists of two 4x2.5-inch drive backplanes and requires two
SAS signal cables.
This configuration consists of one 8x2.5-inch drive backplane and requires two
SAS signal cables.
This configuration consists of one 8x1.8-inch drive backplane and requires two
SAS signal cables.
58 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
