Removing the USB/video tray assembly
This information provides instructions on how to remove the USB/video tray
assembly.
About this task
To remove the USB/video tray assembly, complete the following steps:
Procedure
1. Read the safety information and installation guidelines, see “Safety” on page vii
and “Installation guidelines” on page 35.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Slide the server out of the rack.
4. Remove the server top cover (see “Removing the server top cover” on page
226).
5. Remove the fan cage assembly (see “Removing the fan cage assembly” on page
270).
6. Remove all RAID batteries or flash power modules from the USB/video tray
assembly, if any are installed (see “Removing a RAID battery or flash power
module” on page 275).
7. Disconnect the USB/video tray assembly cable from the system board.

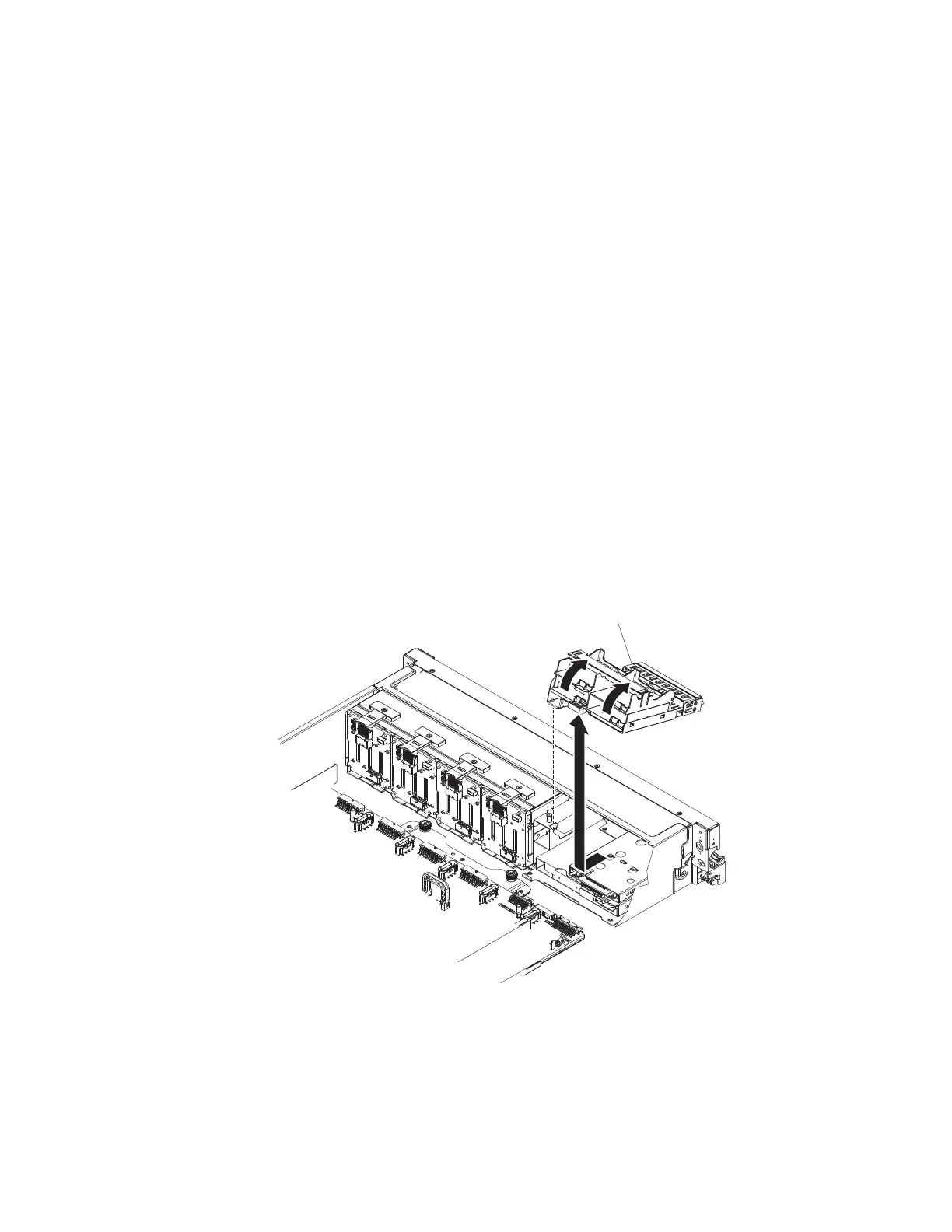

8. Lift the tab on the rear of the USB/video tray assembly and the assembly; then,
slide the assembly out (toward the rear of the server) of the server.
USB / Video tray
assembly
9. If you are instructed to return the USB/video tray assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
288 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
