Backplane configurations for 12 drives
This information covers the supported backplane configurations for 12 drives.
About this task

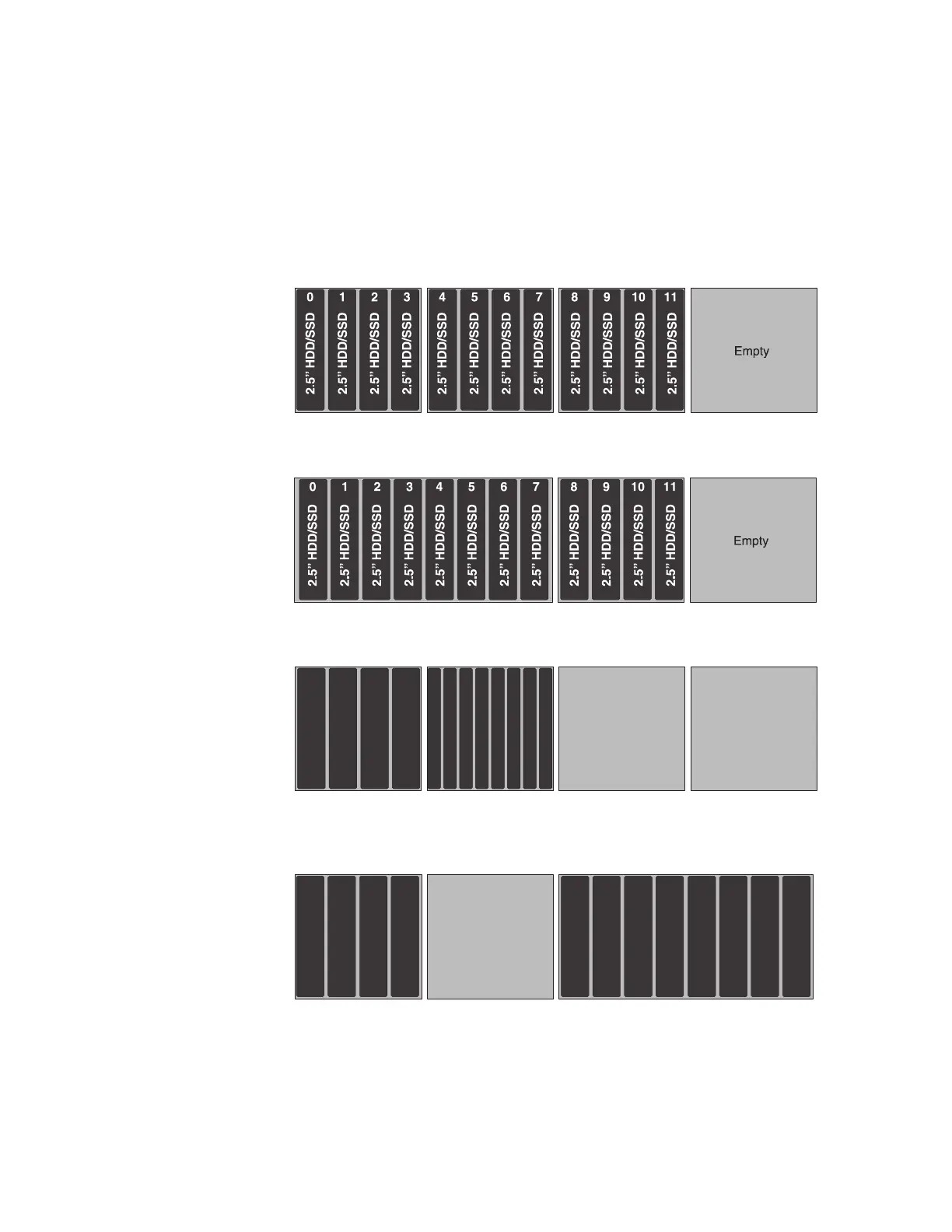

The following illustrations show the supported backplane configurations to
support 12 drives.
This configuration consists of three 4x2.5-inch drive backplanes and requires
three SAS signal cables.
This configuration consists of one 8x2.5-inch drive backplane and one
4x2.5-inch drive backplane and requires three SAS signal cables.
This configuration consists of one 4x2.5-inch drive backplane and one
8x1.8-inch drive backplane and requires three SAS signal cables.
8 9 10 15
0123
Empty Empty
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
1112 13 14
This configuration consists of one 4x2.5-inch drive backplane and one
8x2.5-inch drive backplane with controller expander and requires two SAS
signal cables.
8 9 10 11 12 13 14 15
0123
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
Empty
Chapter 2. Installing optional devices 59
