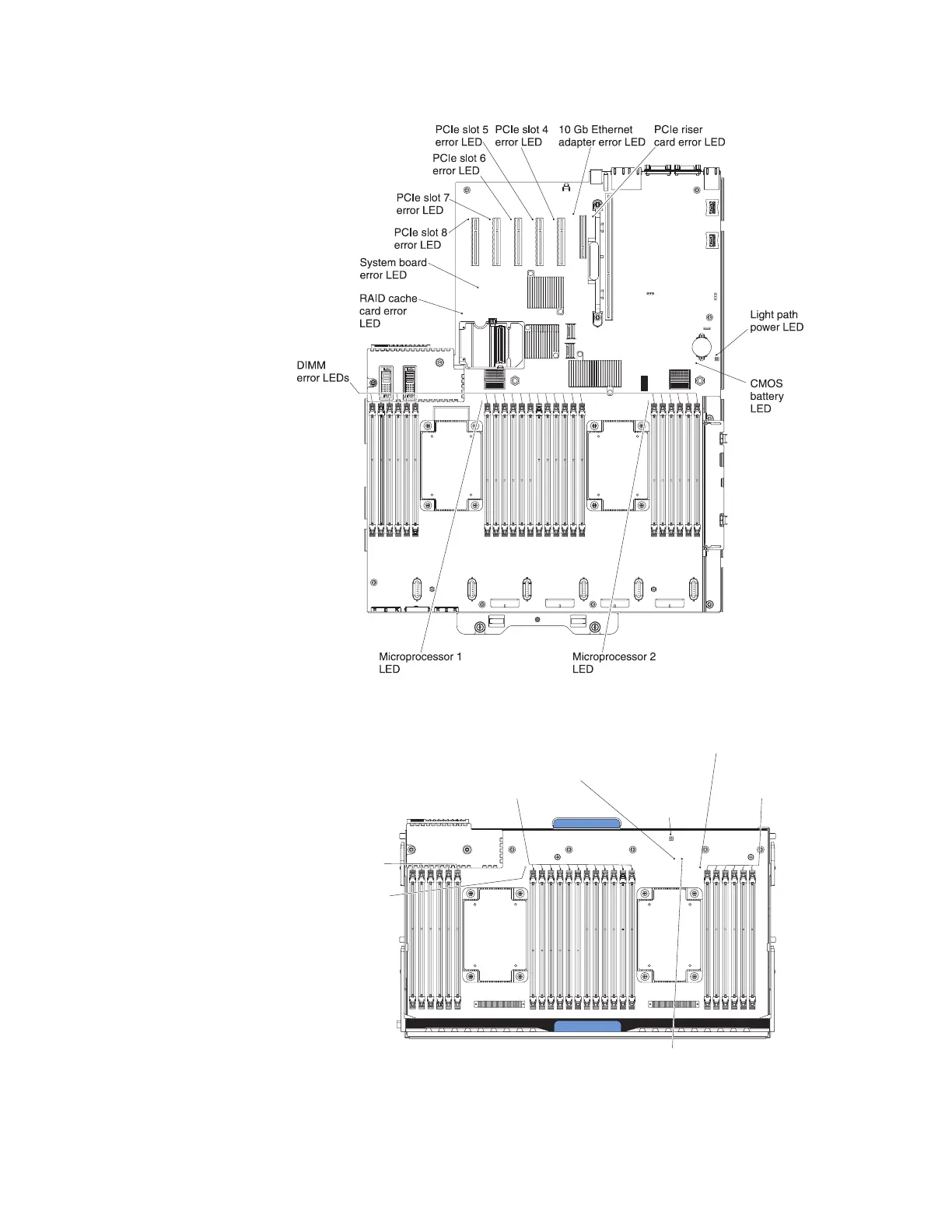

The following illustration shows the LEDs and connectors on the system board.
The following illustration shows the LEDs on the optional microprocessor and
memory expansion tray.
DIMMs
error LEDs
25-30
DIMMs
31-42
error LEDs
DIMMs
43-48
error LEDs
Microprocessor 4
error LED
Microprocessor 3
error LED
System board
error LED
Microprocessor
and memory
expansion board
error LED
Light path
power LED
Chapter 4. Troubleshooting 173
