2. Touch the static-protective package that contains the new ServeRAID M5110
SAS/SATA adapter to any unpainted surface on the outside of the server;
then, grasp the adapter by the top edge or upper corners of the adapter and
remove it from the package.
3. Align the ServeRAID M5110 SAS/SATA adapter so that the keys align
correctly with the connector on the riser-card assembly.
4. Insert the SAS/SATA adapter into the connector on the riser-card until it is
firmly seated.
Attention: Incomplete insertion might cause damage to the server or the
adapter.
5. Reinstall the cable to the RAID cache cards, if it was removed (see “Replacing
a RAID cache card” on page 277).
6. Reinstall the riser-card assembly into the system board.

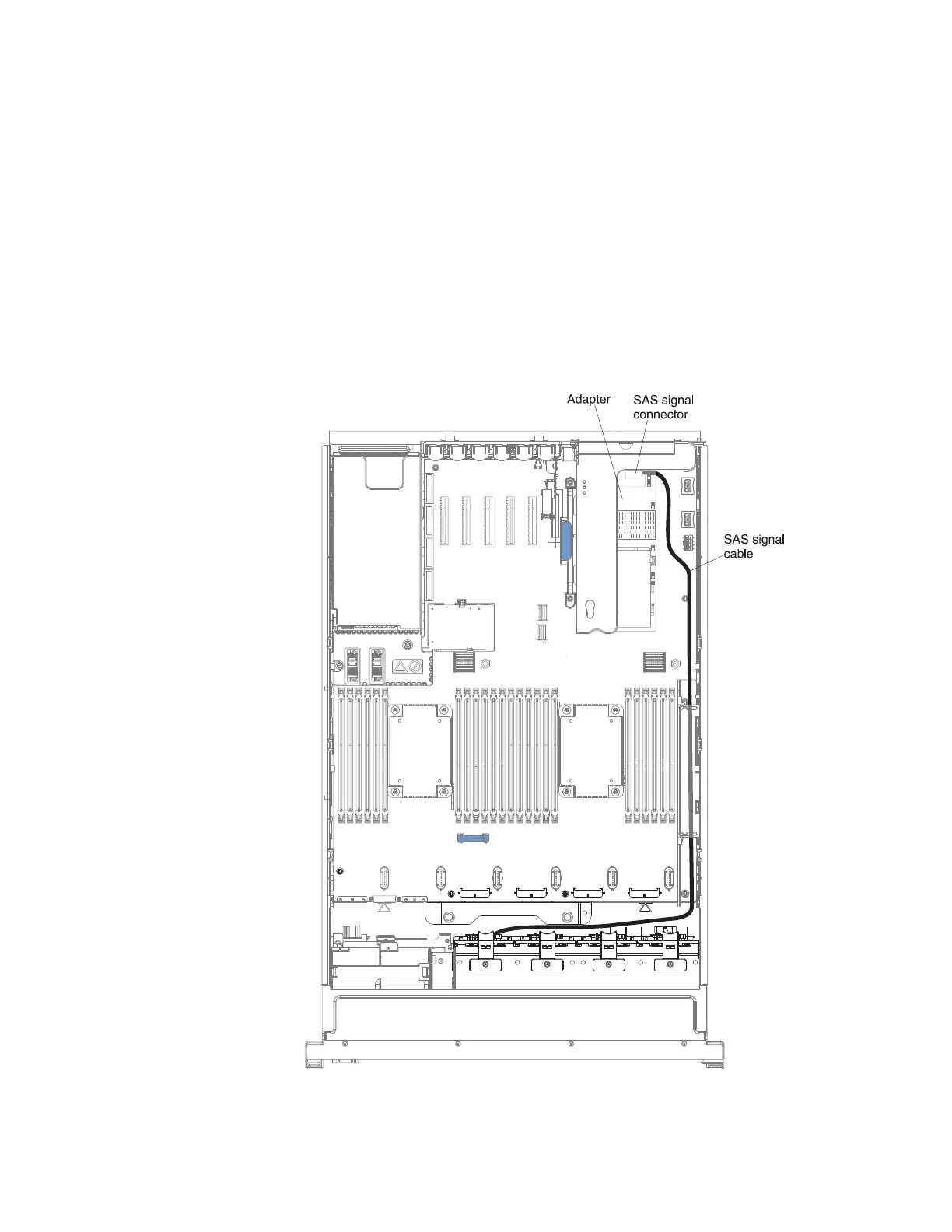

7. Reconnect cables to the adapter.
8. Replace the cover (see “Replacing the server top cover” on page 227).
9. Slide the server in the rack.
10. Reconnect the power cord and any cables that you removed.
Chapter 6. Removing and replacing components 253
