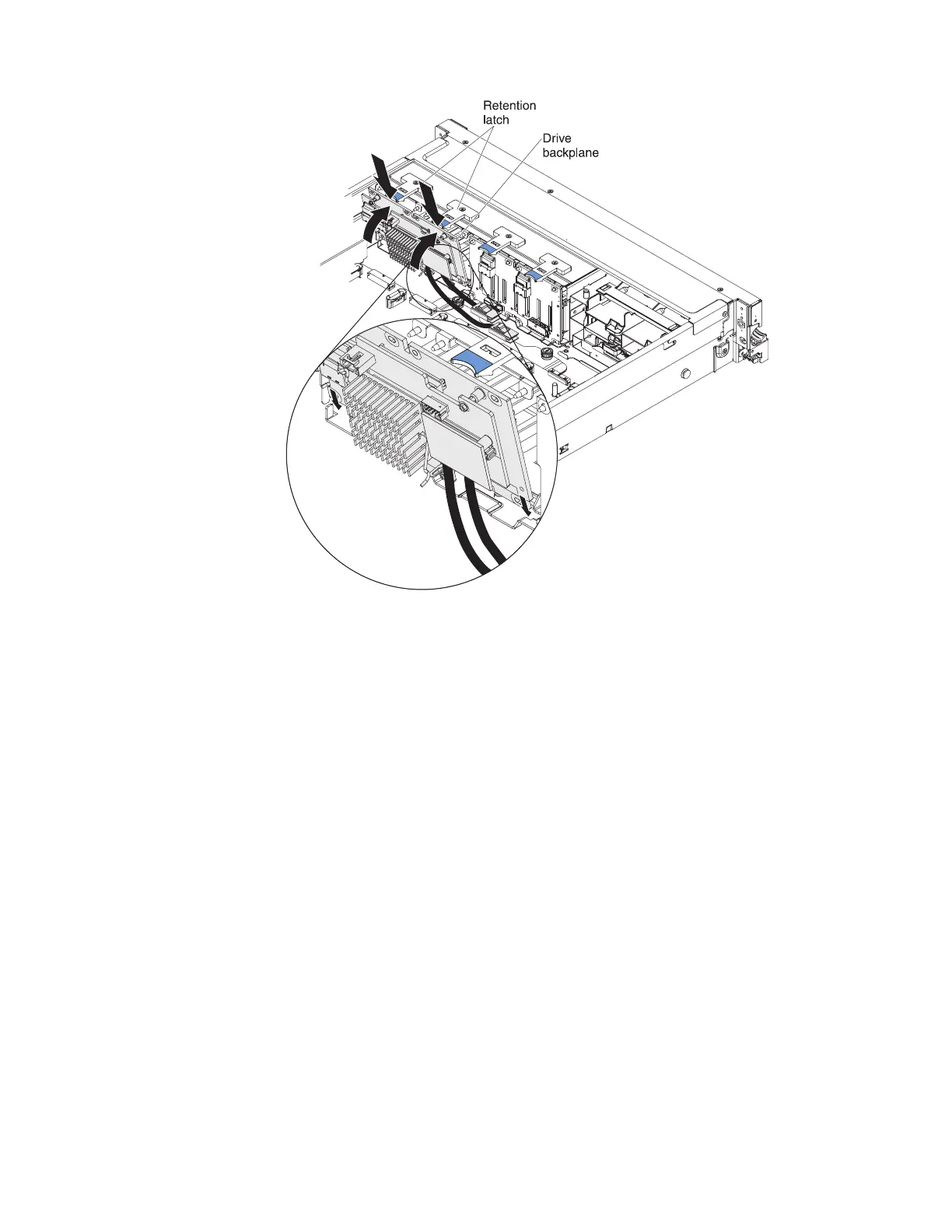

6. Reconnect the interposer cables to the other backplane.
7. Reconnect the long SAS signal cables to the backplane and the system board
that you disconnected them from earlier.
8. Reinstall the fan cage assembly (see “Replacing the fan cage assembly” on
page 271).
9. Reinstall the drives and filler panels.
10. Install the cover (see “Replacing the server top cover” on page 227).
11. Slide the server in the rack.
12. Reconnect the power cord and any cables that you removed.
13. Turn on the peripheral devices and the server.
298 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
