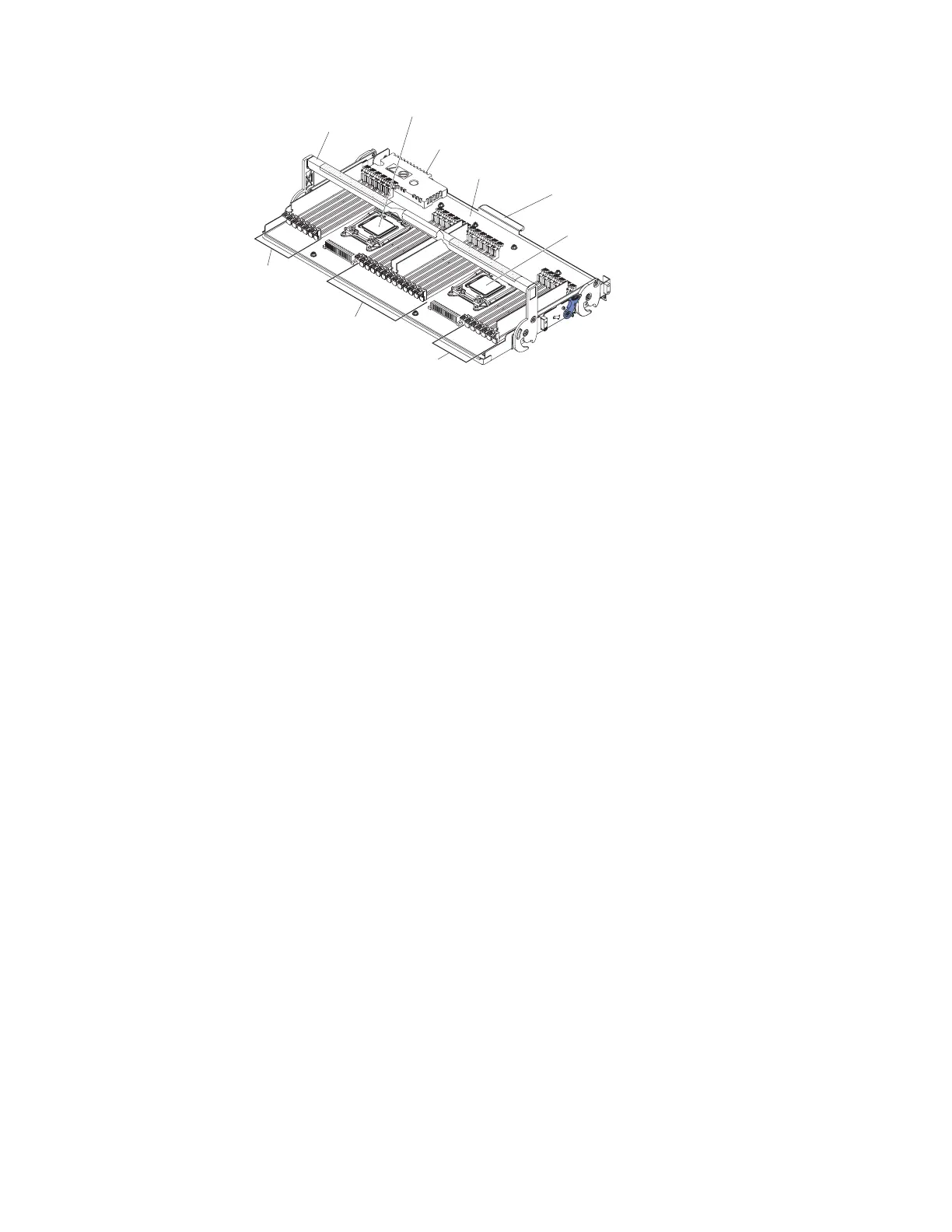

Tray handle
Memory tray
DIMMs
25-30
DIMMs
31-42
DIMMs
43-48
Microprocessor 3
Microprocessor 4
Tray handle
Power supply 2
connector
To install a DIMM, complete the following steps.
Note: These instructions apply to installing DIMMs on the base system board or
the microprocessor and memory expansion tray.
1. Read the safety information and installation guidelines, see “Safety” on page vii
and “Installation guidelines” on page 35.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Remove the top cover (see “Removing the server top cover” on page 38).
4. If you are installing DIMMs on the system board, remove the microprocessor
and memory expansion tray (see “Removing the microprocessor and memory
expansion tray assembly” on page 305) or DIMM air baffle (see “Removing the
DIMM air baffle” on page 232), whichever one is installed.
5. Open the retaining clip on each end of the DIMM connector.
Note: To avoid breaking the retaining clips or damaging the DIMM connectors,
open and close the clips gently.
52 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
