8-32 Working with Master/Slave
ICE Vulcan Service Manual
Note: If you are intending to replace LPA 2/3, it is advisable to configure the
new LPA 2/3, before
disabling the currently activated LPA 2/3.
Disabling LPA 1
1
Establish communications between CLARiTY Configuration Manager
and LPA 1 (“How to
Connect the CLARiTY Configuration Manager to
the LPA using an RS232 connection” on page
5-8).
2
Right click on the 'New Printer' icon when the icon turns 'green' and
Select 'Multiple
Machine Modes > Disable Multiple Machine Mode',
from the list as shown in Figure 8-27.

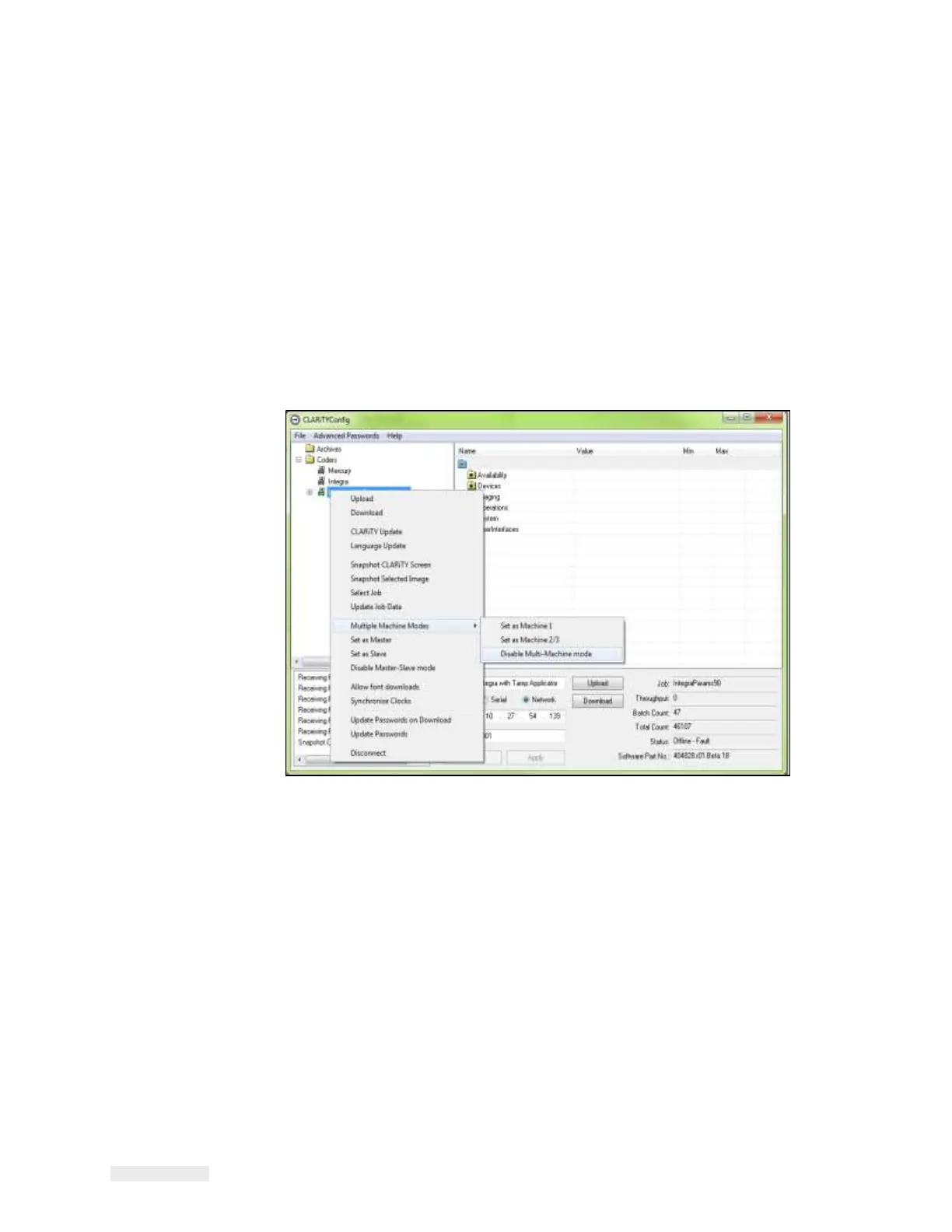

Figure 8-30: CLARiTY Config - LPA 1 Disabling
A confirmation box appears asking you to confirm this action.
3
Click Yes.
4
Replace LPA 1 with a new LPA containing identical configuration
parameters, but with a
new IP address and ensure the old LPA 1 has
been removed from the network.
