Installing the Label Applicator 4-7
ICE Vulcan Service Manual
2
Place the base (item 5, Figure 4-1) onto the floor and secure in place by
locking the casters
(item 1, Figure 4-2) and lowering the additional
feet (item 2, Figure 4-2) into position.
Note: Do not over torque the locking bolts. The stand will need to be adjusted
later when the
equipment is aligned to the conveyor.
1
7
2
6
5
4
3
1.
Mounting Fixture
2.
Casters (X4)
3.
Vertical Stand Fixing Location
4.
Feet (X4)
5.
Base
6.
M6 Nuts (X4)
7.
Stand

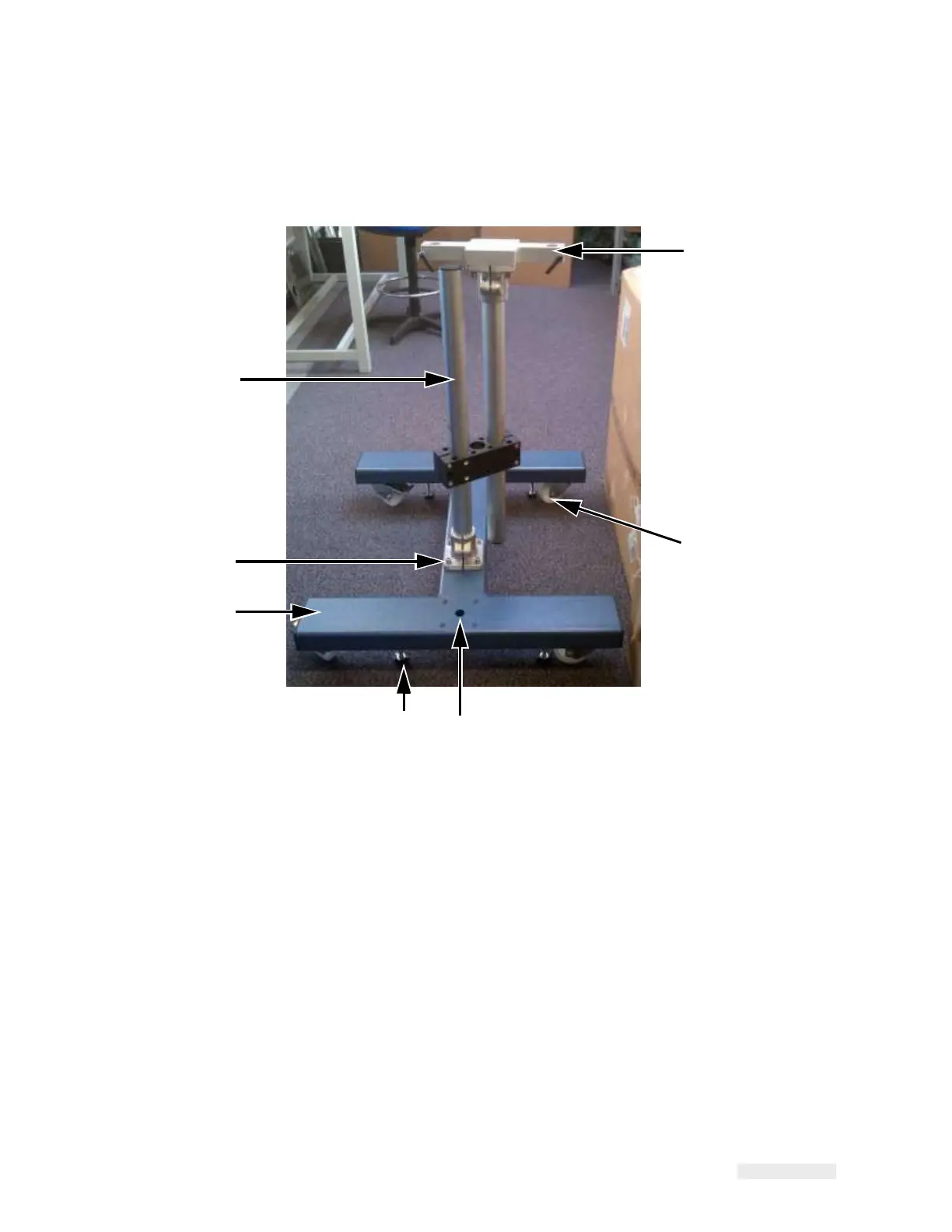

Figure 4-1:Horizontal Stand (H Base)
