Installing the Label Applicator 4-22
ICE Vulcan Service Manual

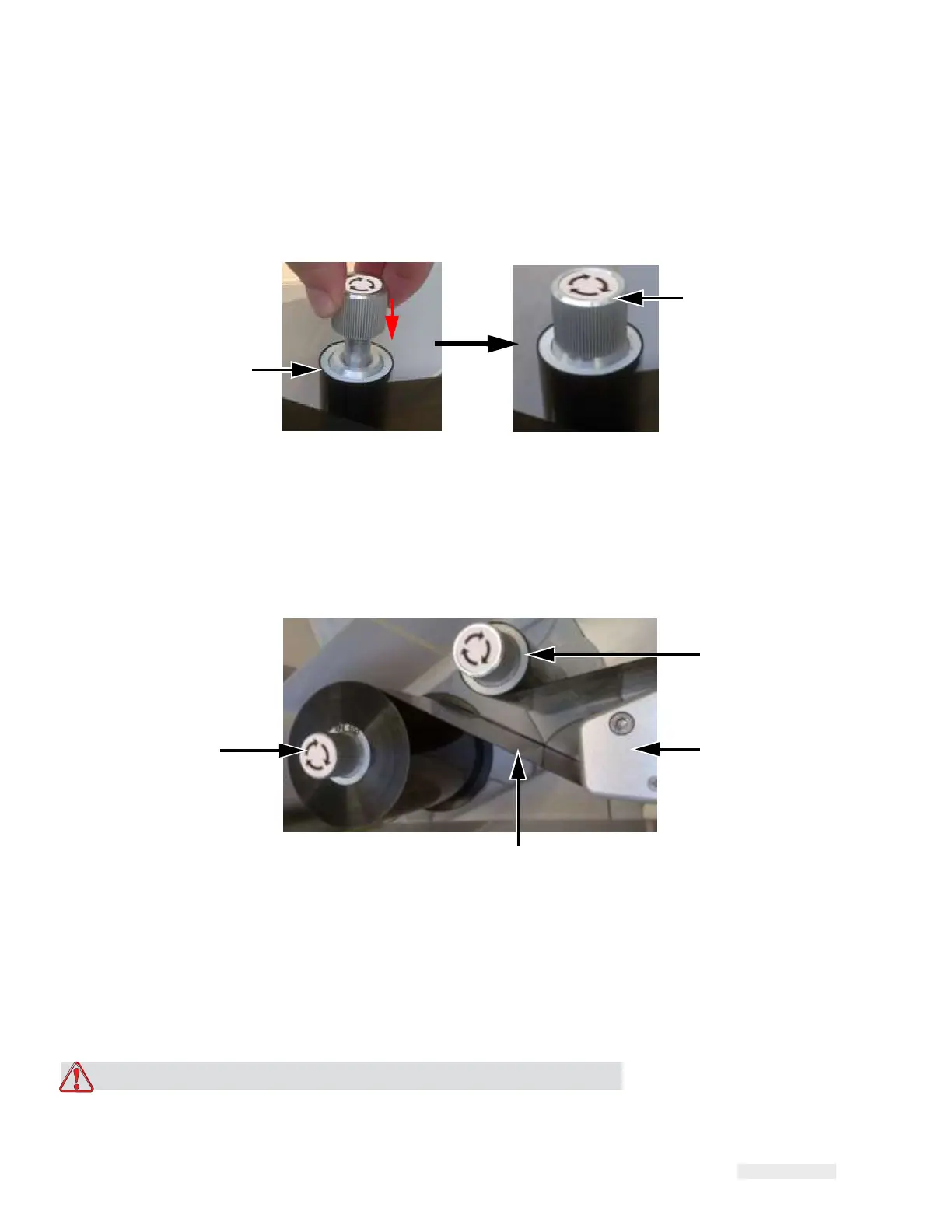

34 Secure the ribbon to the waste mandrel with an adhesive
tape to prevent from slipping.
Note: Make sure that the pullout shaft is in required position.
1
2
1. Pullout Shaft
2. Waste Ribbon Mandrel
Figure 4-23: Pullout Shaft
35 Wind excess ribbon onto the waste mandrel, ensuring that the
ribbon is not torn or wrinkled.
1
4
2
3
1. Ribbon Waste Mandrel
2. Printhead
3. Ribbon Supply (Ink Side Down)
4. Ribbon Supply Mandrel
Figure 4-24: Loading Ribbon Around Printhead
Caution
EQUIPMENT DAMAGE. Turn the waste mandrel only to provide tension in the ribbon.
