Ice vulcan User Manual

4-20 Installing the Label Applicator
ICE Vulcan Service Manual
32 Thread the ribbon around the printhead, ensuring that the ribbon is
not routed below the gap sensor (see Figure 4-22).
1
3
2
1. Printhead
2. Gap Sensor
3. Ribbon Supply (Ink Side Down)

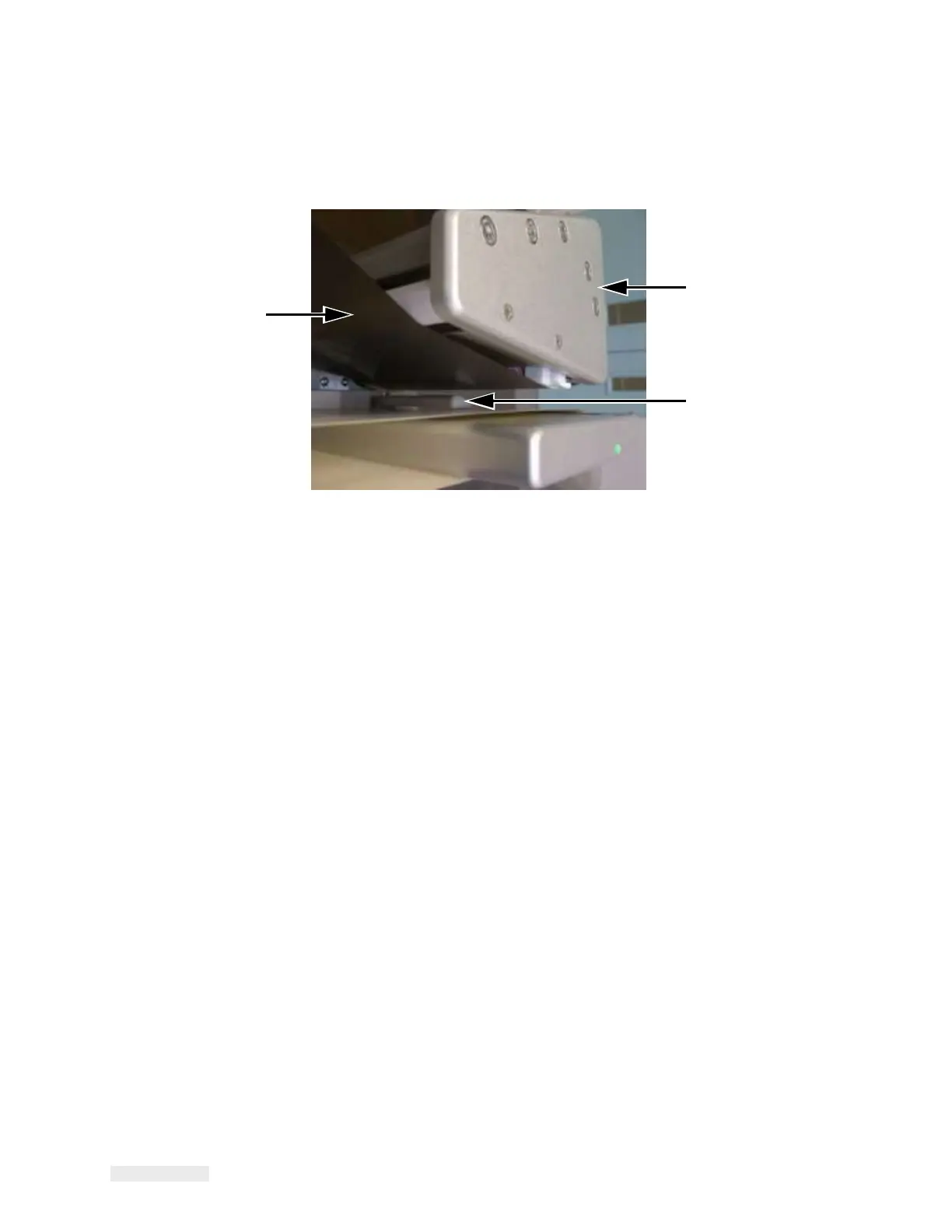

Figure 4-22: Loading Ribbon Around Printhead
Note: Ensure that the ink side of the ribbon is facing the label after the ribbon
is routed through the printhead.
Refer to the webbing diagram for the correct web path (see Figure 4-15 on
page 4-17 and Figure 4-16 on page 4-17).
33 Load the fresh waste core onto the waste mandrel and ensure that
the ribbon runs in the direction of the mandrel arrow.
