How to Configure the LPA 5-13
ICE Vulcan Service Manual
8
Click the New Coder1 icon and change the method of connection to
Network. Enter the
correct IP address and Port number to match the
values downloaded into the LPA.

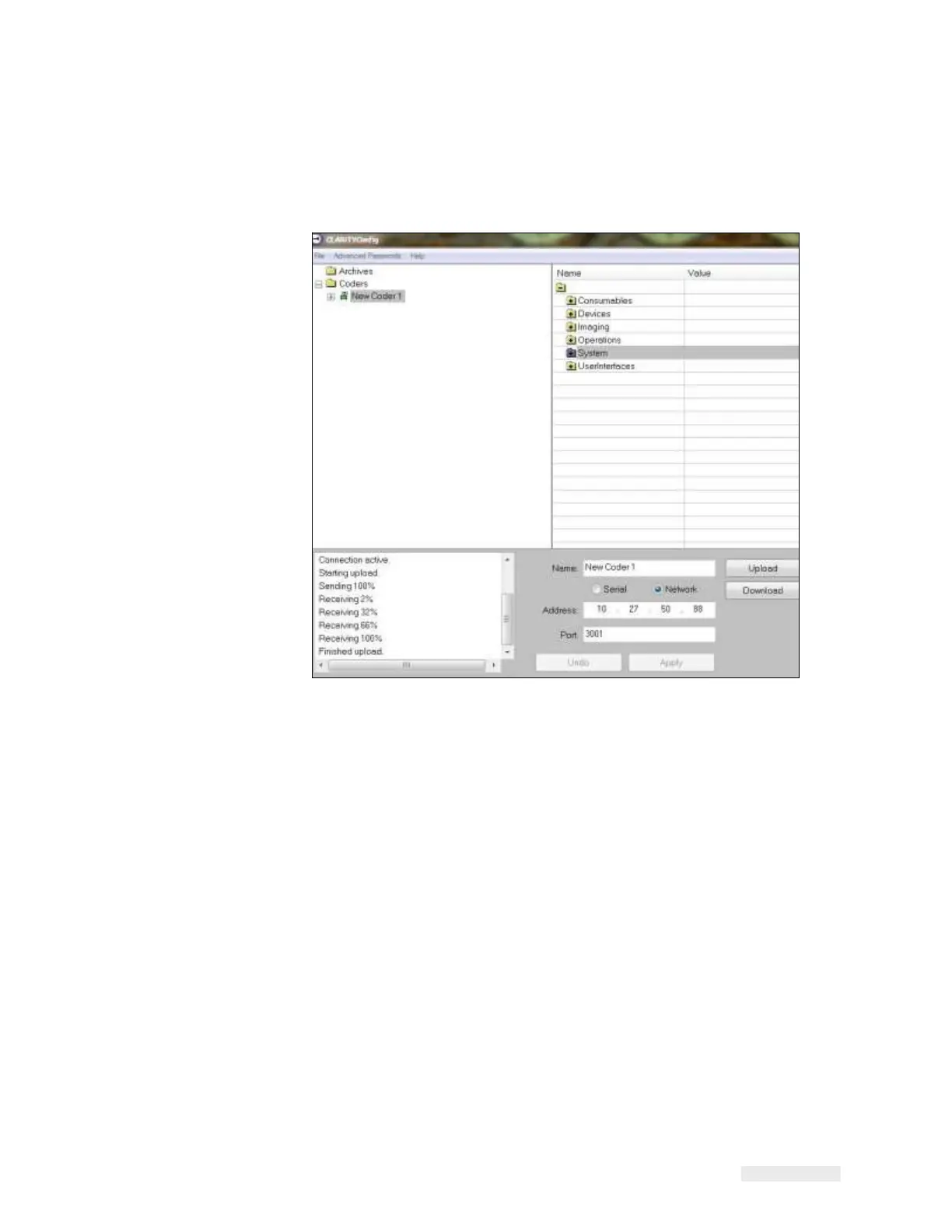

Figure 5-7: New Coder Settings
9
Click the Apply button and the new settings are activated and the
coder icon turns
green.
10
Click the Upload button. The progress of the operation is displayed in the status panel.
This uploads the LPA parameters set to the PC.
The list of folders containing the configuration parameters appears in the
parameter listing (in
the right hand frame of the Configuration Manager).
