Cygnus 2 Operating Manual
1 Confirm that AC line voltage is supplied and proper for Cygnus 2.
2 Confirm that the back panel (main) AC switch is in the ON position.
3 Press the ON/STBY button on the front panel. A green pilot light should be
illuminated next to the power switch.
4 The fan at the back of Cygnus 2 should be exhausting air.

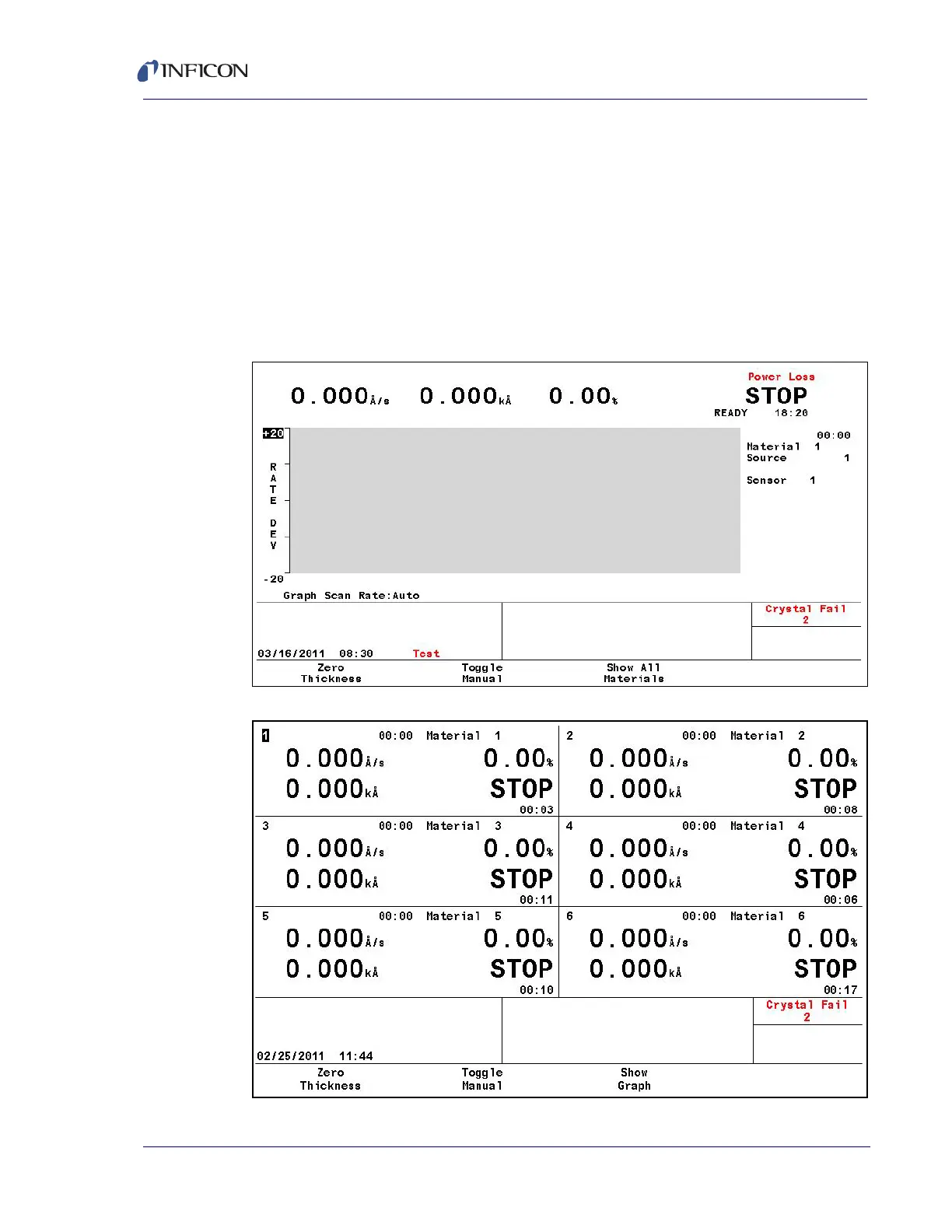

5 After the initial temporary boot-up screen which can be viewed in Maintenance
Sys Status, the LCD monitor will display an image similar to the one shown in
Figure 1-1 or Figure 1-2.
Figure 1-1 Operate screen show graph
Figure 1-2 Operate screen show all materials
