Instron 4400 Series User Manual

(c) When all cables have been connected, dress the cables
into the cable clips provided on the console mounting
bracket, as shown in Figure 3-2. This will ensure that
the cables will not catch on the load frame, grips, or
testing fixtures while the crosshead is moving.

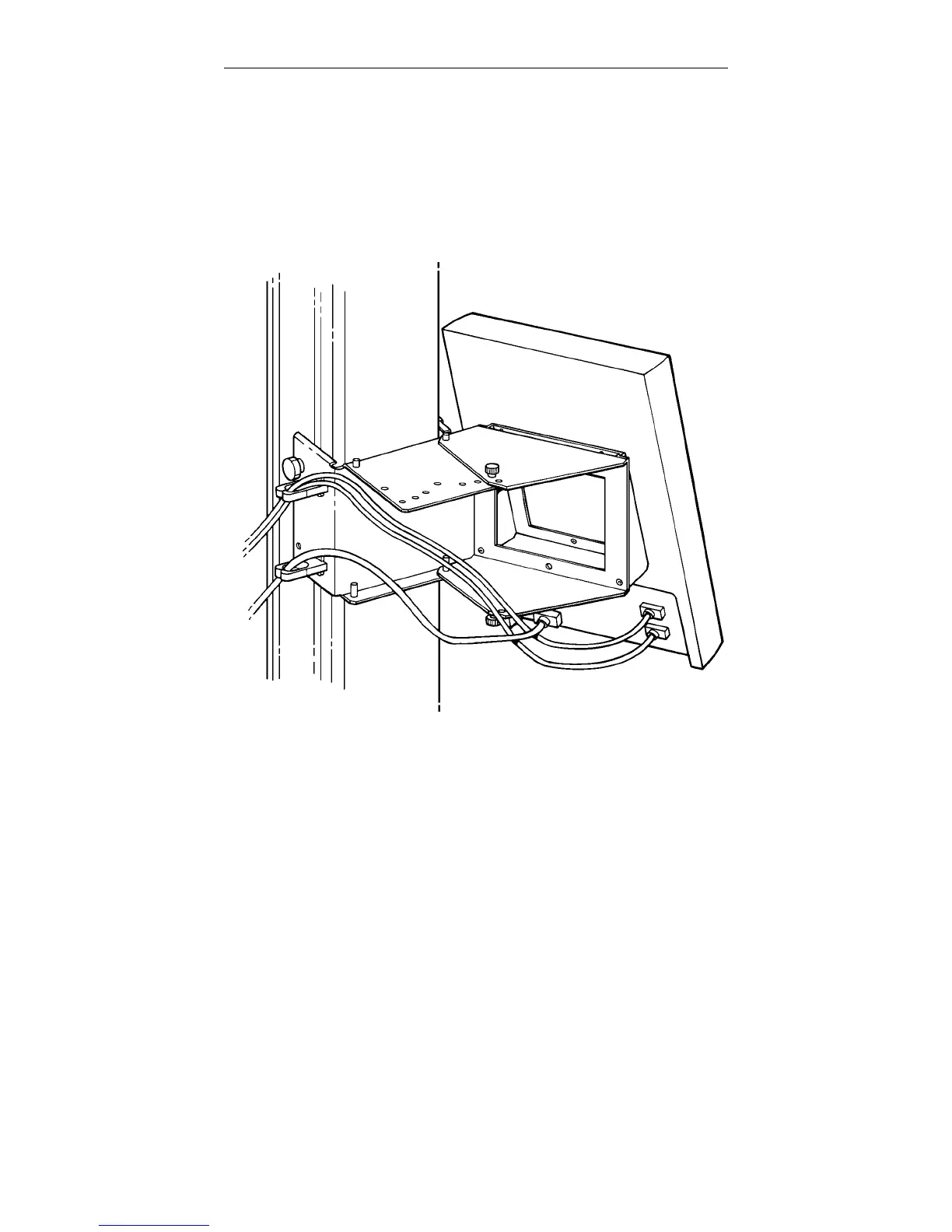

Figure 3-2. Rear Panel Cable Arrangement
Console Connections M10-94400-1
3-8
