Suction Control Valve
11-24 CUSA EXcel Ultrasonic Surgical Aspirator System Service Manual
Disconnect, Lift Out, and Disassemble the Control Valve Assembly
1. Disconnect the 3/8 in. inner diameter (ID) suction tube and clamp at the
contamination guard 90° elbow located above the right end of the suction
control valve.

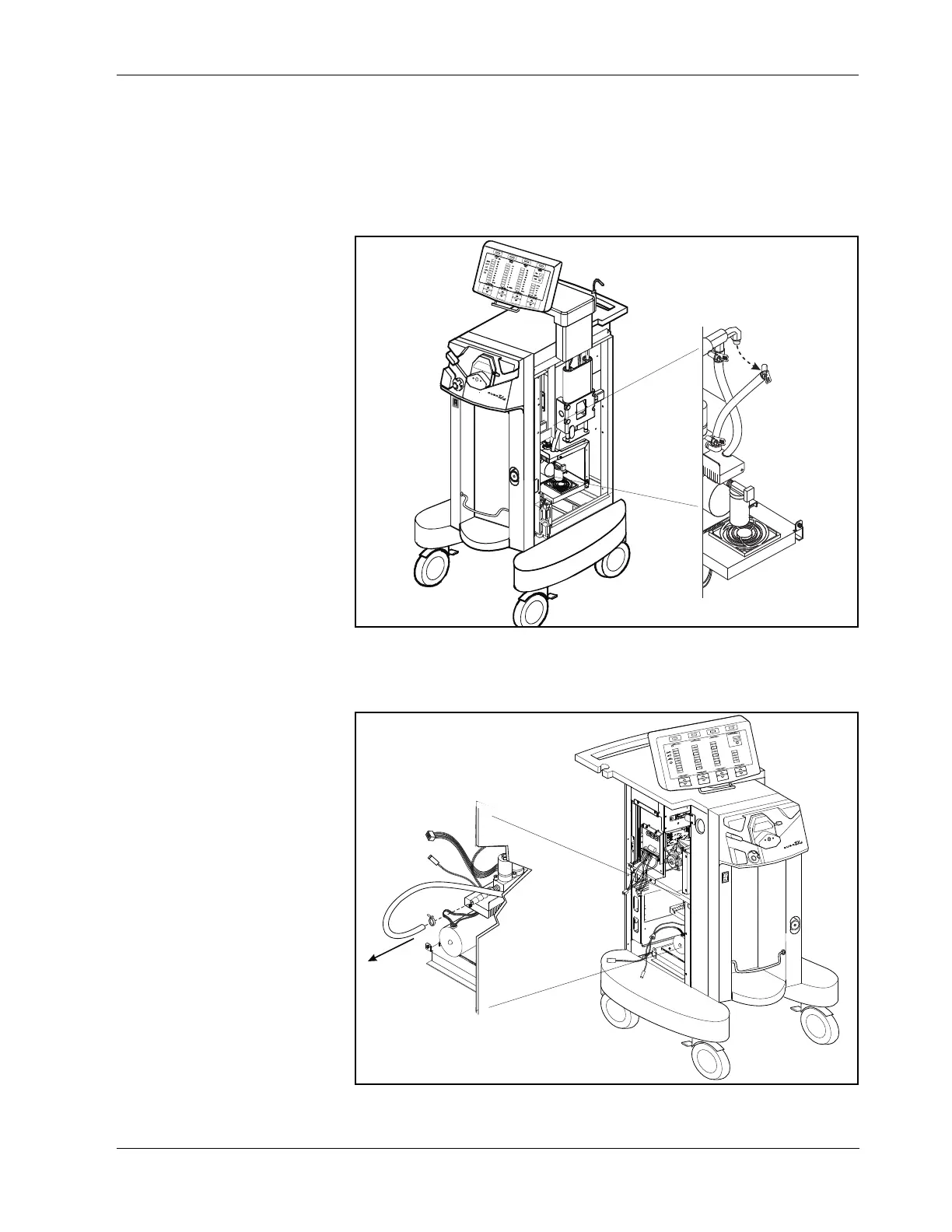

Figure 11-14.
Disconnecting the suction tube at
the contamination guard 90° elbow
2. Remove the cable tie and disconnect the 1⁄8 in. ID tube that connects to the
left end of the control valve.
Figure 11-15.
Disconnecting the suction tube from
the left end of the suction control
valve
