Integra Cusa Excel Service Manual

Suction Control Valve
Replacement Procedures
CUSA EXcel Ultrasonic Surgical Aspirator System Service Manual 11-25
3. Pull the strain relief bushing for suction pump motor wires away from the
manifold bracket (a mounting bracket for the suction control valve).

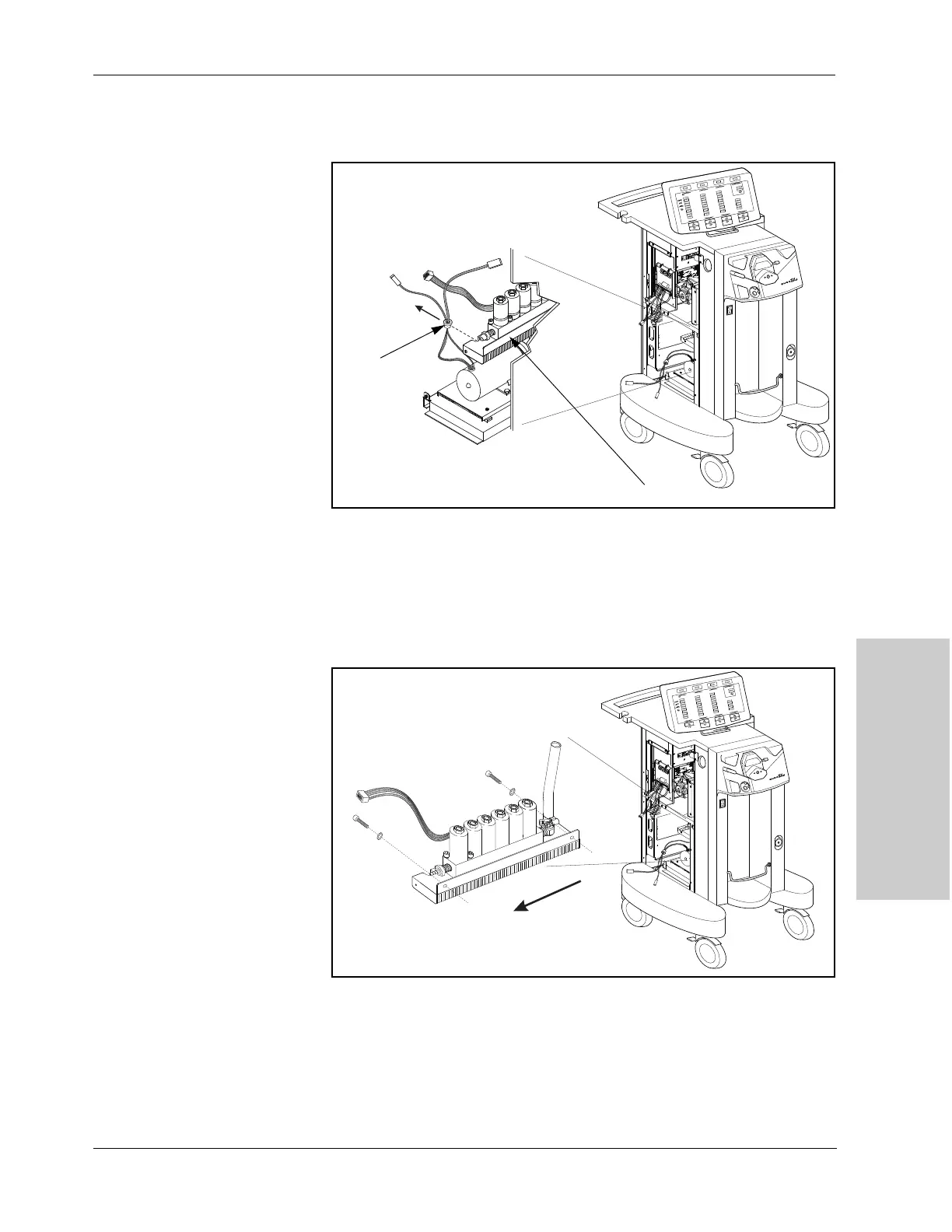

Figure 11-16.
Pulling the strain relief bushing away
from the manifold bracket
4. Remove the manifold bracket from the console:
a. Remove two hex bolts (M5) and two lock washers that secure the
manifold bracket to the frame.
b. Carefully lift the manifold bracket (and suction control valve) out the left
side of the console.
Figure 11-17.
Removing the manifold bracket from
the console
Bushing
Manifold bracket
