Suction Control Valve
11-26 CUSA EXcel Ultrasonic Surgical Aspirator System Service Manual
5. Remove the suction control valve from the manifold bracket:
a. Remove three screws (M4 socket head cap screws) from the suction
control valve.
Note: A lock washer secures the screw on each end of the assembly, but
no lock washer secures the third screw.
b. Lift the suction control valve from the manifold bracket.
Note: The inlet screen for the suction control valve becomes unattached
when you lift the suction control valve off the manifold bracket.

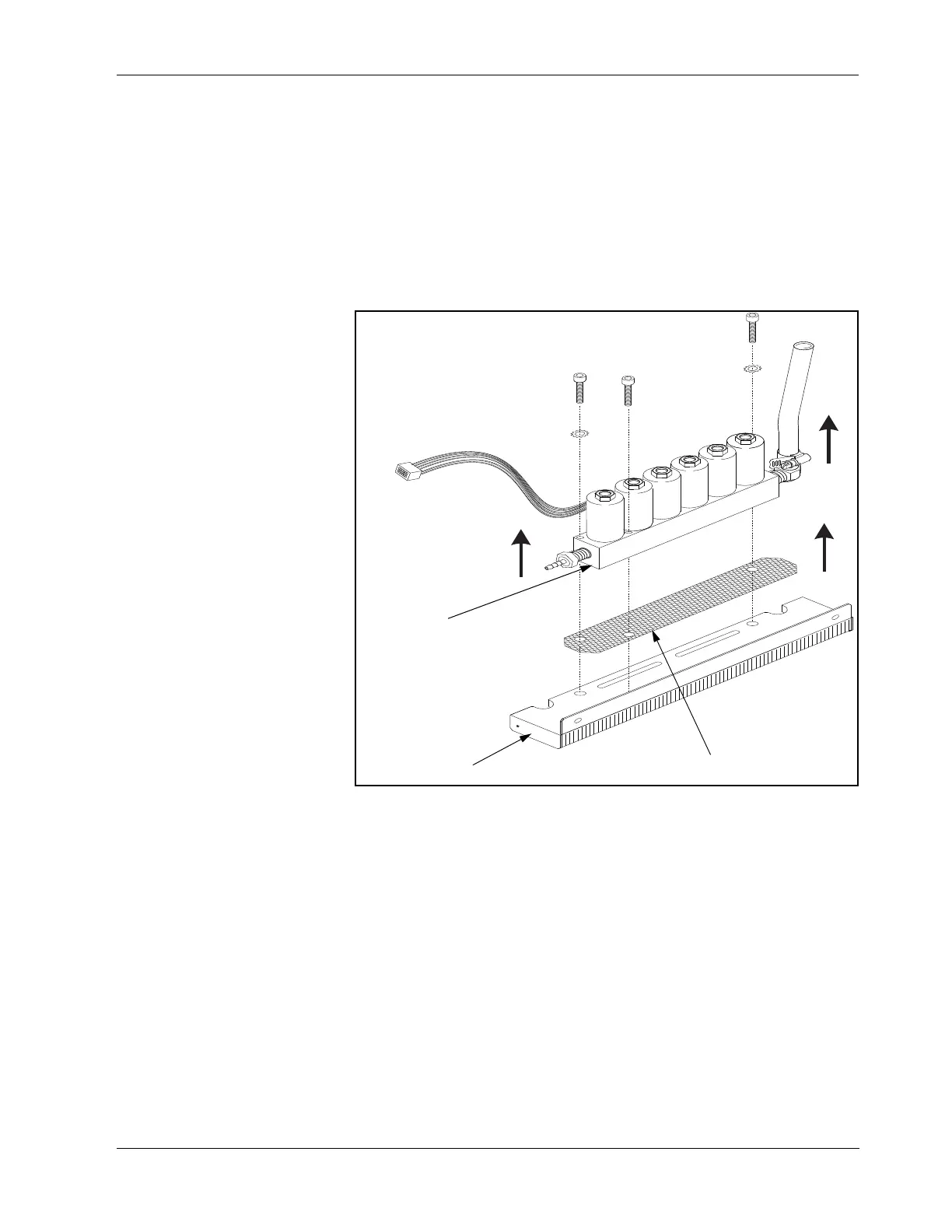

Figure 11-18.
Removing the suction control valve
from the manifold bracket
Inlet screen
Manifold bracket
Suction control
valve
