Suction Pump and Controller Card
Replacement Procedures
CUSA EXcel Ultrasonic Surgical Aspirator System Service Manual 11-31
3. Disconnect the cables from the suction pump to the suction pump controller
card:

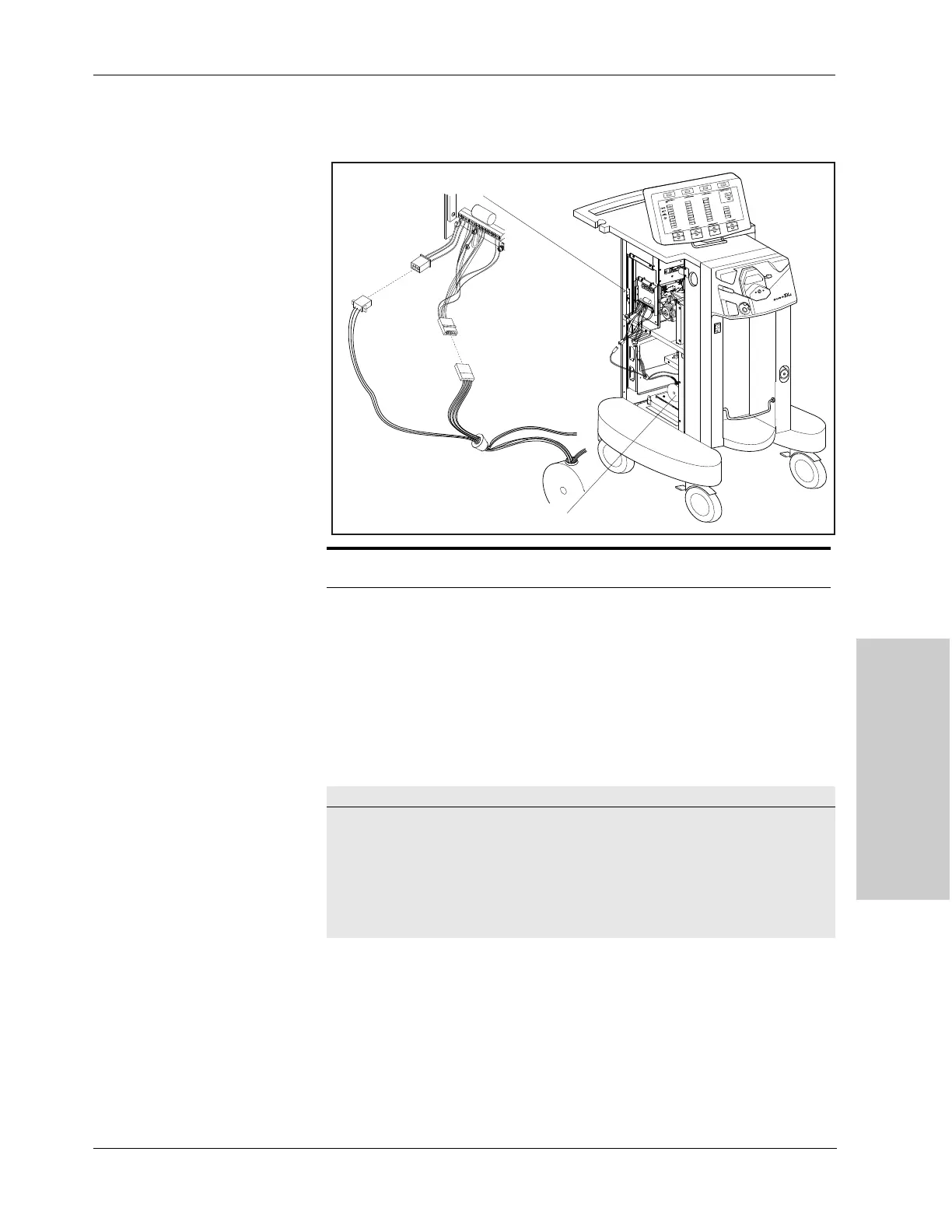

Figure 11-22.
Disconnecting cables from the suction
pump to the suction pump controller
card
Table 11-5.
Suction pump cable connections to the
controller card
4.
Pull the strain relief bushing for suction pump motor wires away from the
manifold bracket.
Connector Wire Color
3-pin, white red, blue, yellow
7-pin, black yellow, brown, green, red, orange
*
*
The jumper wire occupies pins 6 and 7 on the connector.
Notice
If you are installing the Noise Reduction Kit (NRK) to the system, refer to the
following addendum for instructions:
Addendum to CUSA EXcel
®
and CUSA EXcel
®
-8 Service Manuals:
Installing the Noise Reduction Kit (Document # 510I000IE)
Perform the procedures in this addendum in place of the instructions described
on pages 11-32 through 11-35 in this service manual.
