CUSA EXcel Ultrasonic Surgical Aspirator System Service Manual 13-5
7. Route a vertical band over the clear plastic bag:
a. Over the top of the arm
b. Around the left side of the console
c. Through the footswitch bracket on the bottom of the console
d. Around the right side of the console.
Be sure the clear plastic bag does not bend the reference cards in the control
panel.
Secure the band with one banding seal.
8. Attach the right (5) and left (6) foam cushions to the console.

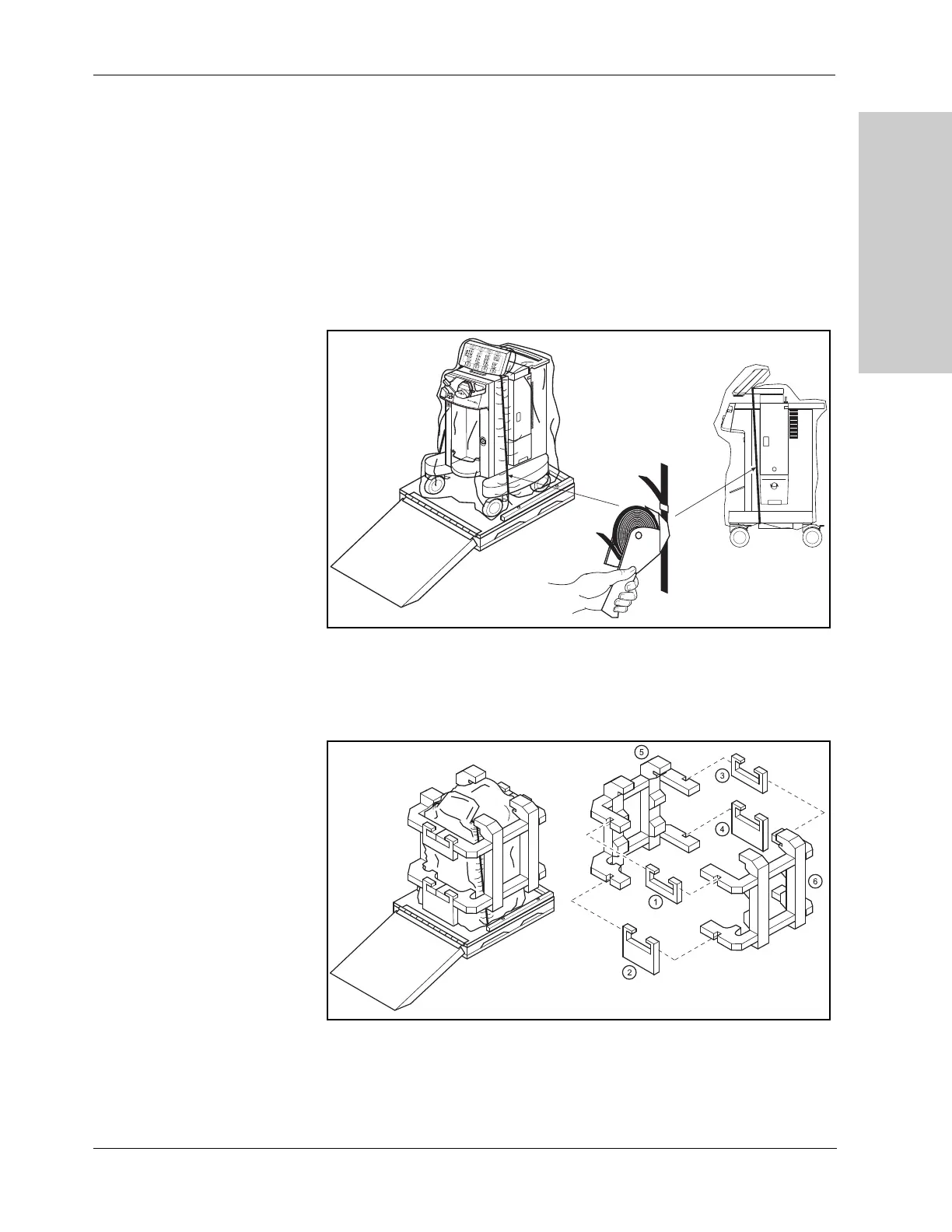

Attach the four interlocking foam pieces (1–4) from the foam cushion around
the console (refer to the following figure).
