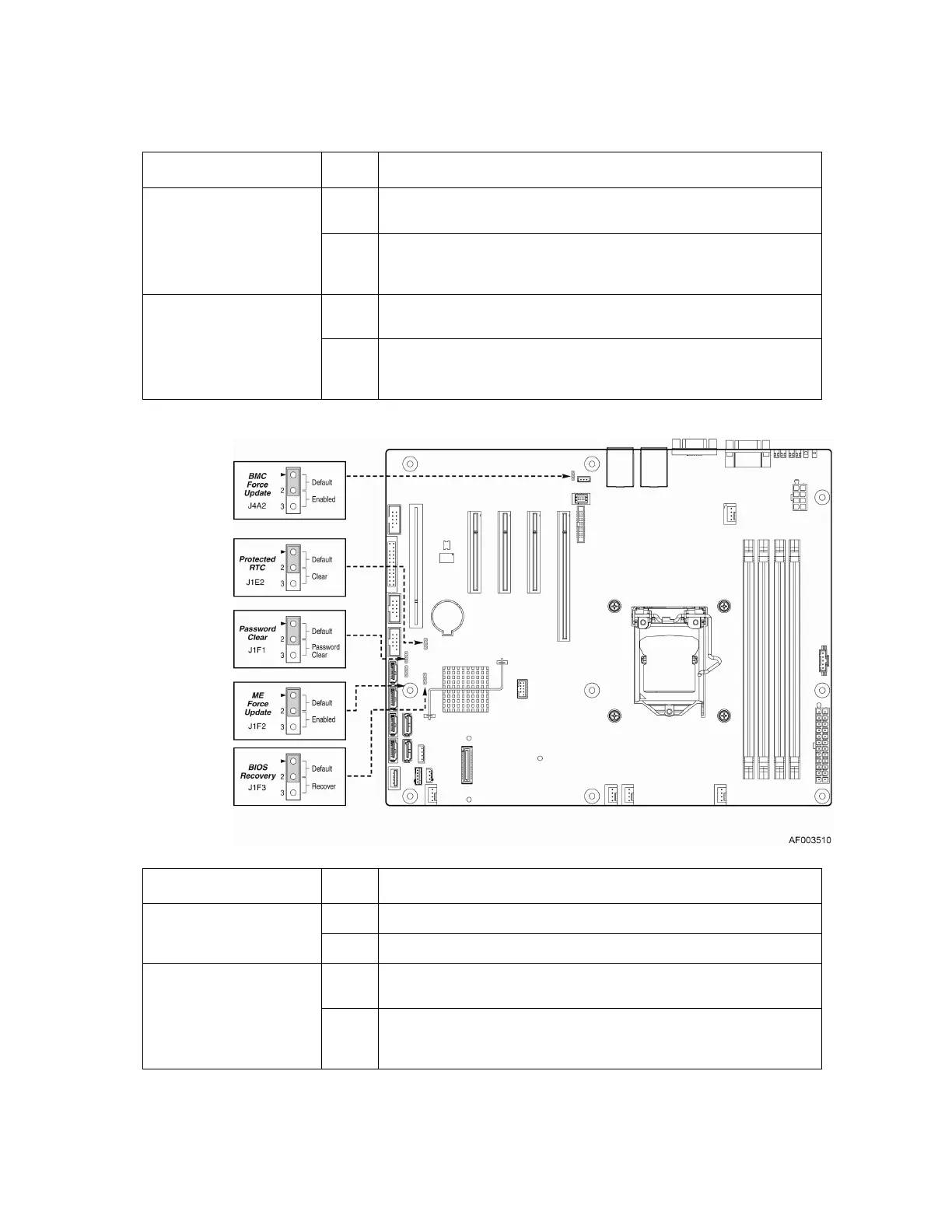

Intel® Server Board S1200BT Service Guide 11
J1G1: Password Clear 1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 If these pins are jumpered, administrator and user passwords are
cleared within 5-10 seconds after the system is powered on. These
pins should not be jumpered for normal operation.
J2G1: BIOS Recovery 1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 Given that the main system BIOS will not boot with these pins
jumpered, system can only boot from EFI-bootable recovery media
with the recovery BIOS image.
Jumper Name Pins What happens at system reset…
Jumper Name Pins What happens at system reset…
J4A2: BMC Force Update 1-2 BMC Firmware Force Update Mode - Disabled (Default)
2-3 BMC Firmware Force Update Mode - Enabled
J1F1: Password Clear 1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 If these pins are jumpered, administrator and user passwords will be
cleared on the next reset.
Note: These pins should not be jumpered for normal operation.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
