Intel® Server Board S1200BT Service Guide 43
PCI Configuration
The PCI Configuration screen allows the user to configure the PCI memory space used for
onboard and add-in adapters, configure video options, and configure onboard adapter
options. It also displays the NIC MAC Addresses in use.
To access this screen from the Main screen, select Advanced > PCI Configuration. To
move to another screen, press the <Esc> key to return to the Advanced screen, then select
the desired screen.

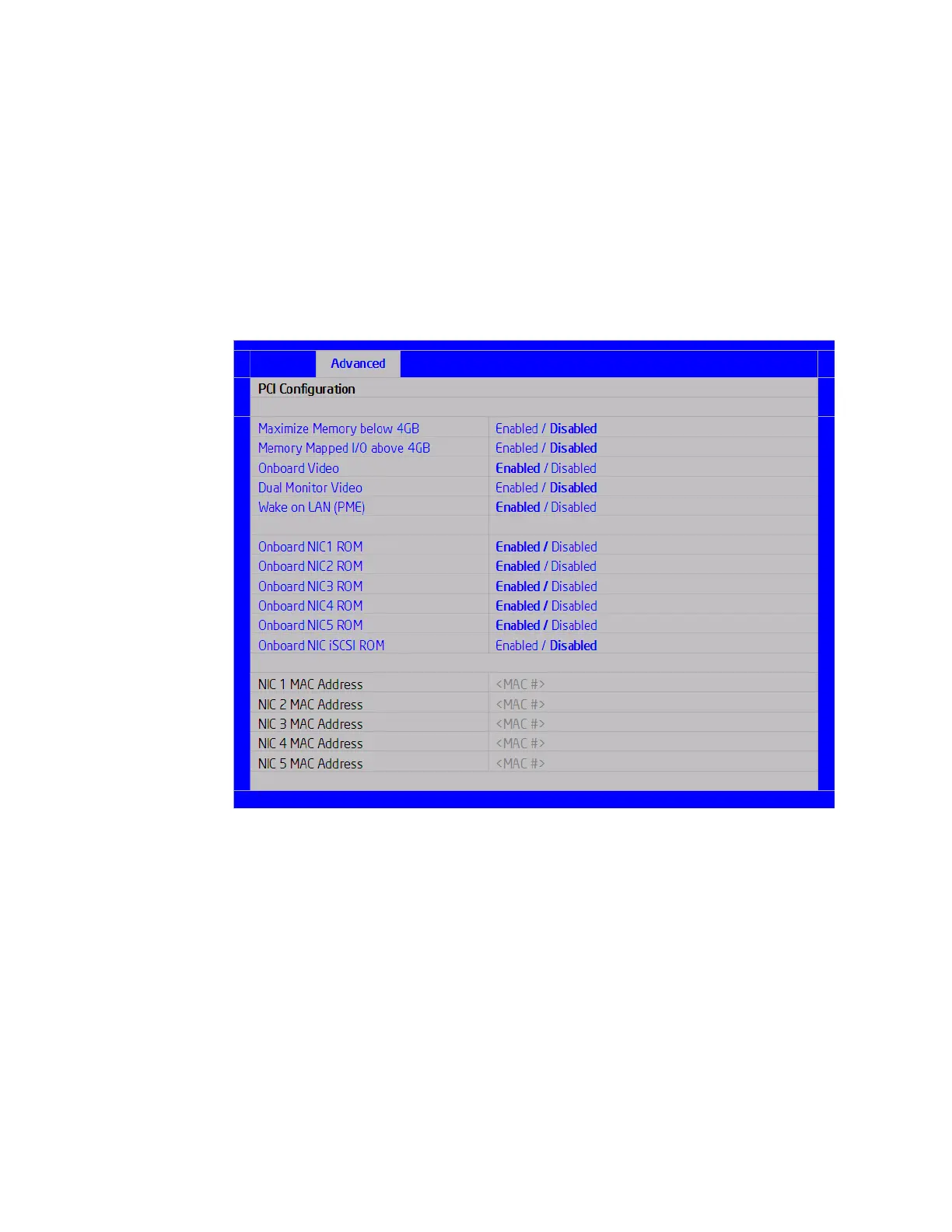

Figure 16. PCI Configuration Screen
10.Wake on LAN (PME)
Option Values: Enabled
Disabled
Help Text:
Enables or disables PCI PME function for Wake on LAN capability from LAN adapters.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
