10 Intel® Server Board S1200BT Service Guide
Configuration Jumpers

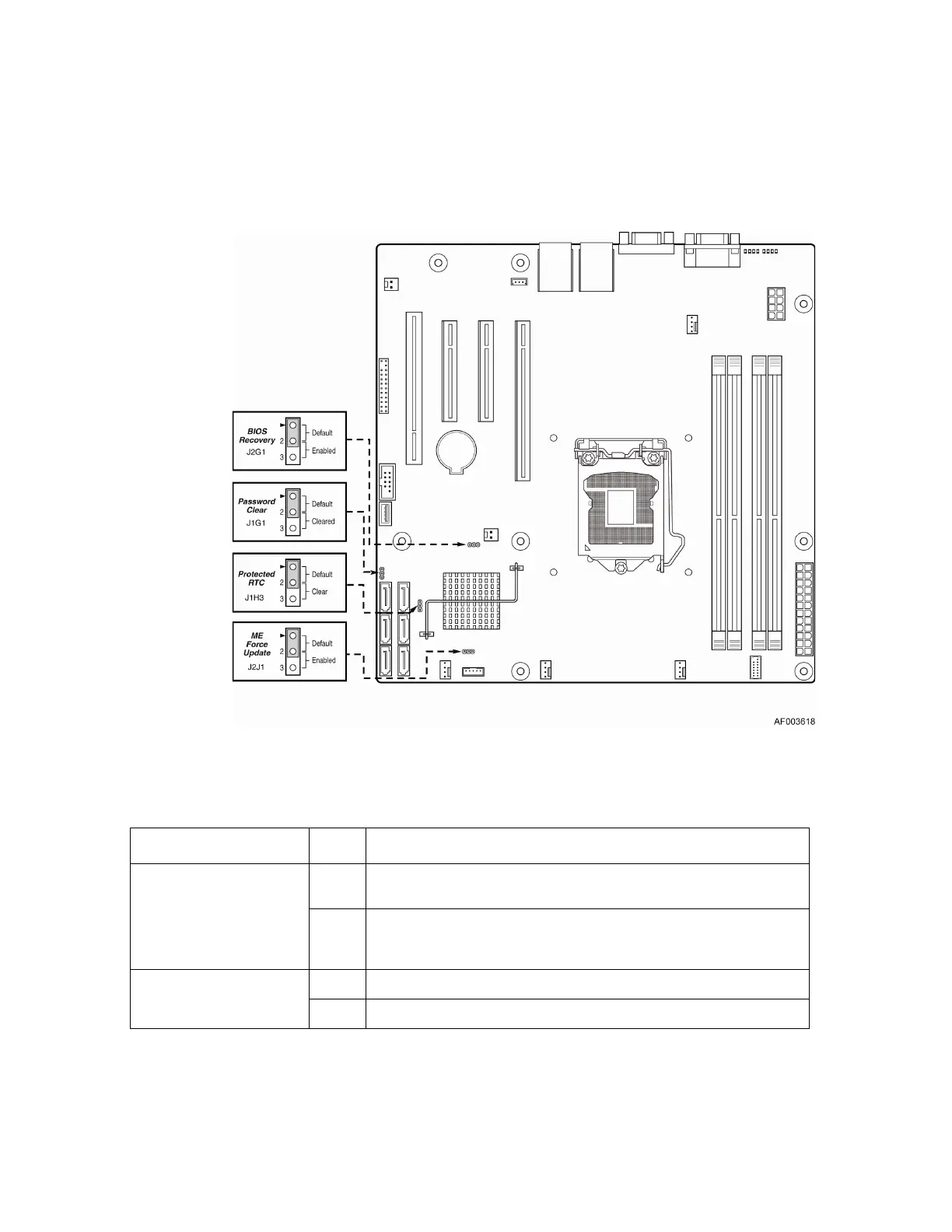

Figure 5. Jumper Blocks (J2G1, J1G1, J1H3, and J2J1) on S1200BTS
Jumper Name Pins What happens at system reset…
J1H3: Protected RTC
(CMOS clear)
1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 If these pins are jumpered with AC power plugged, the CMOS
settings are cleared within five seconds. These pins should not be
jumpered for normal operation.
J1J2: ME Force Update 1-2 ME Firmware Force Update Mode – Disabled (Default)
2-3 ME Firmware Force Update Mode – Enabled

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
