Intel® Server Board S1200BT Service Guide 73

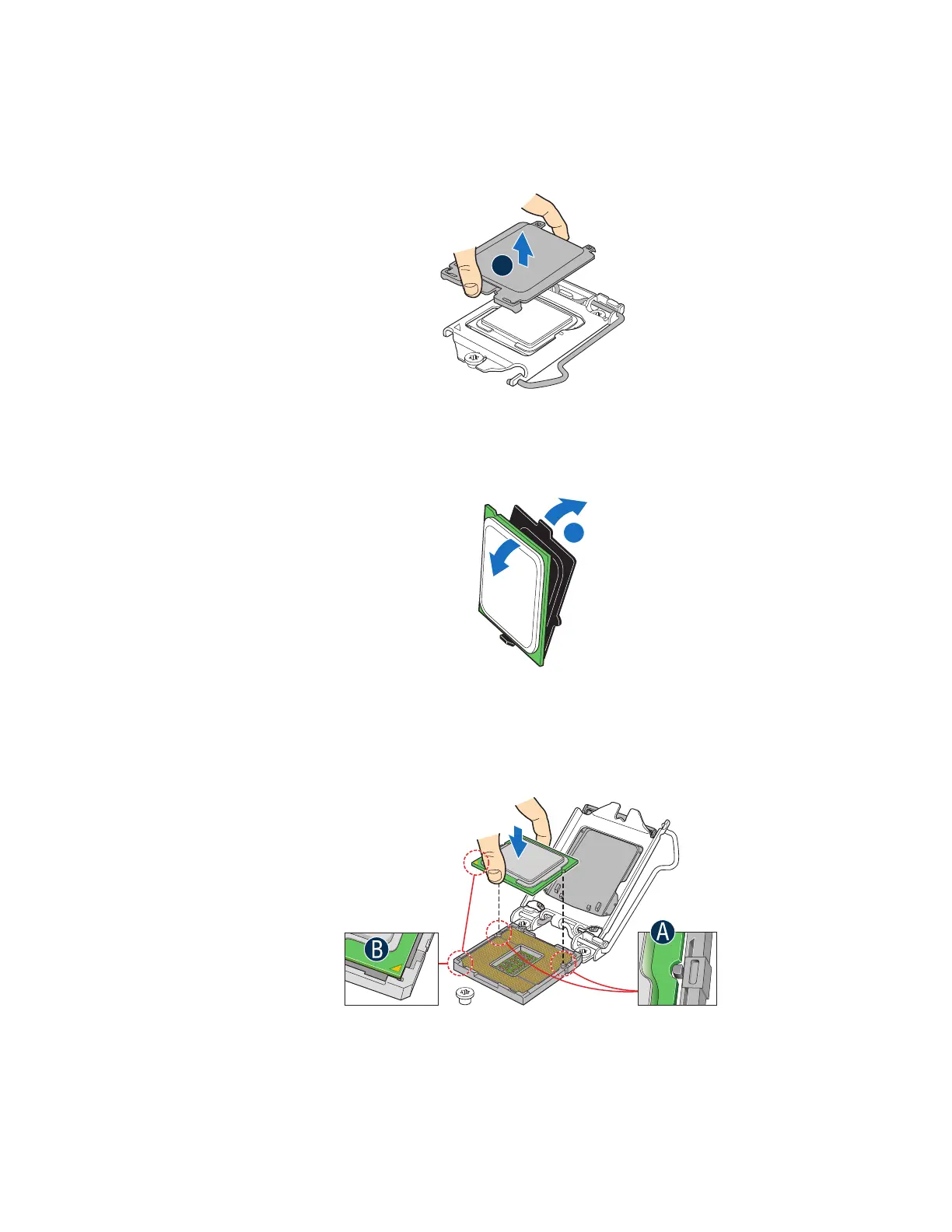

Figure 47. Remove the Socket Protective Cover
8. Take the processor out of the box and remove the protective shipping cover
(Figure 48).
Figure 48. Remove the Processor Protective Cover
9. Align the processor cutouts to match the two socket pins, and insert the processor
into the socket as shown in Figure 49.
Figure 49. Installing the Processor
AF004580
Save the
protective
cover.
A
AF003189
A
AF004575

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
