Intel® Server Board S1200BT Service Guide 59

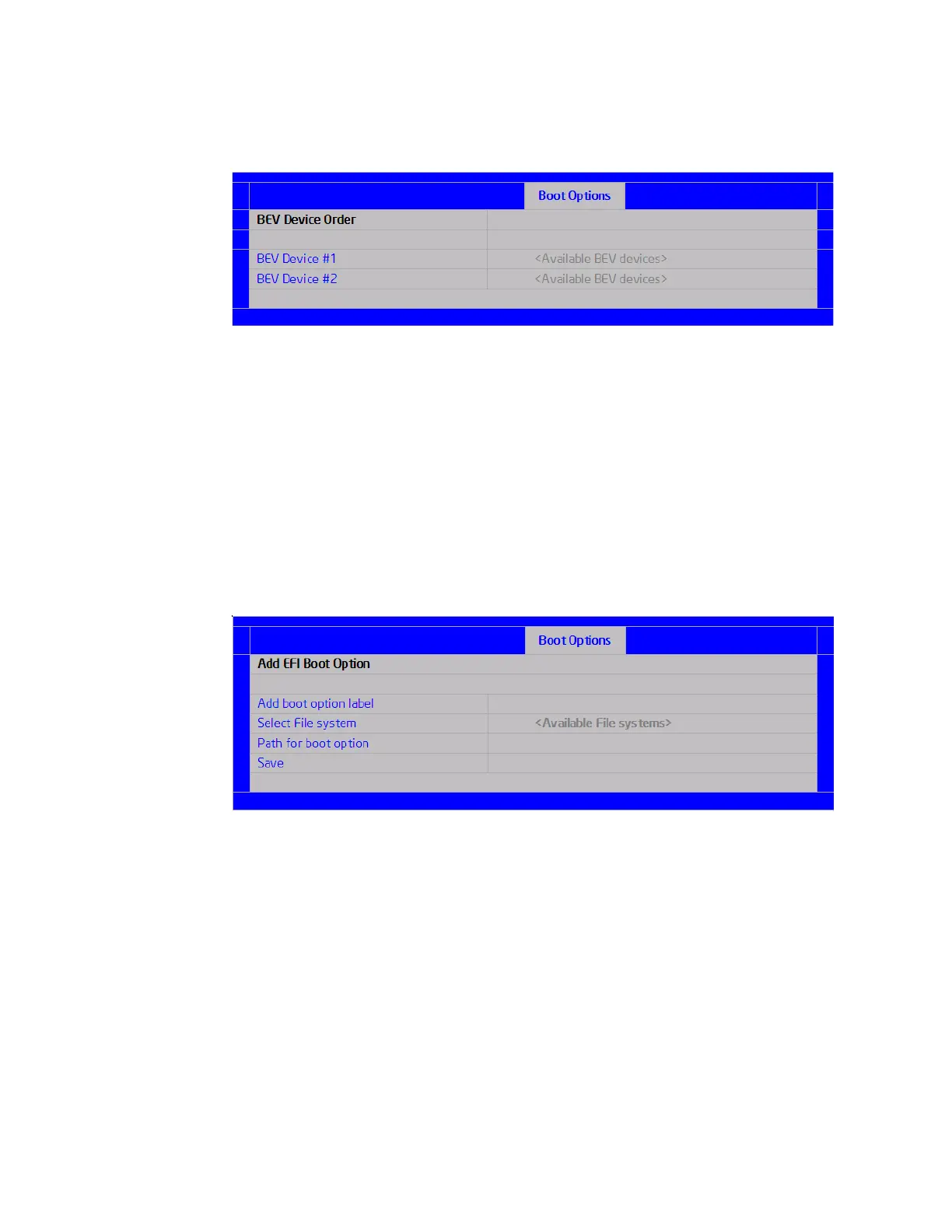

Figure 33. BEV Device Order Screen
Add EFI Boot Option
The Add EFI Boot Option screen allows the user to add an EFI boot option to the boot
order. This screen is only available when there is at least one EFI bootable device present
in the system configuration. The “Internal EFI Shell” Boot Option is permanent and
cannot be added or deleted.
To access this screen from the Main screen, select Boot Options > Add EFI Boot
Option. To move to another screen, press the <Esc> key to return to the Boot Options
screen, then select the desired screen.
Figure 34. Add EFI Boot Option Screen
Delete EFI Boot Option
The Delete EFI Boot Option screen allows the user to remove an EFI boot option from the
boot order. The “Internal EFI Shell” Boot Option will not be listed, since it is permanent
and cannot be added or deleted.
To access this screen from the Main screen, select Boot Options > Delete EFI Boot
Option. To move to another screen, press the <Esc> key to return to the Boot Options
screen, then select the desired screen.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
