72
Intel® Server
Board
S1200BT Service Guide
5.
Locate the proces
sor socket an
d open the socket lever (see
Figure
45
).

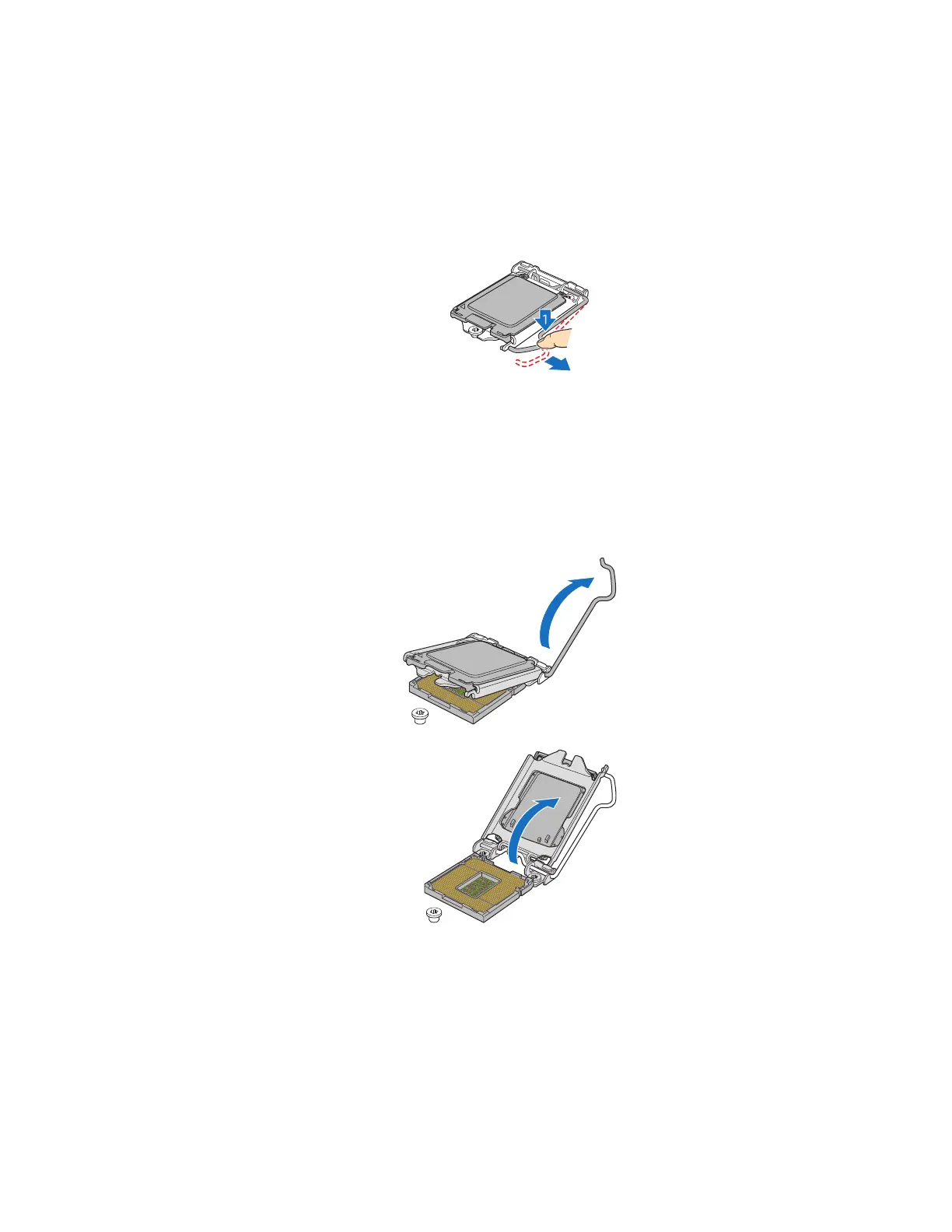

Figure 45. Lifting the L
oad Le
ver
6.
Open the load plate (see
letter “A” and “B” in
Figure
46
).
Figure 46. Open the Load Pla
te
7.
Re
move the socket protective cover (
Figure
47
).
AF004572
AF004573
AF004574
87
89
