24 Intel® Server Board S1200BT Service Guide
Main Screen (Tab)
The Main Screen is the first screen that appears when the BIOS Setup configuration
utility is entered, unless an error has occurred. If an error has occurred, the Error
Manager screen appears instead.

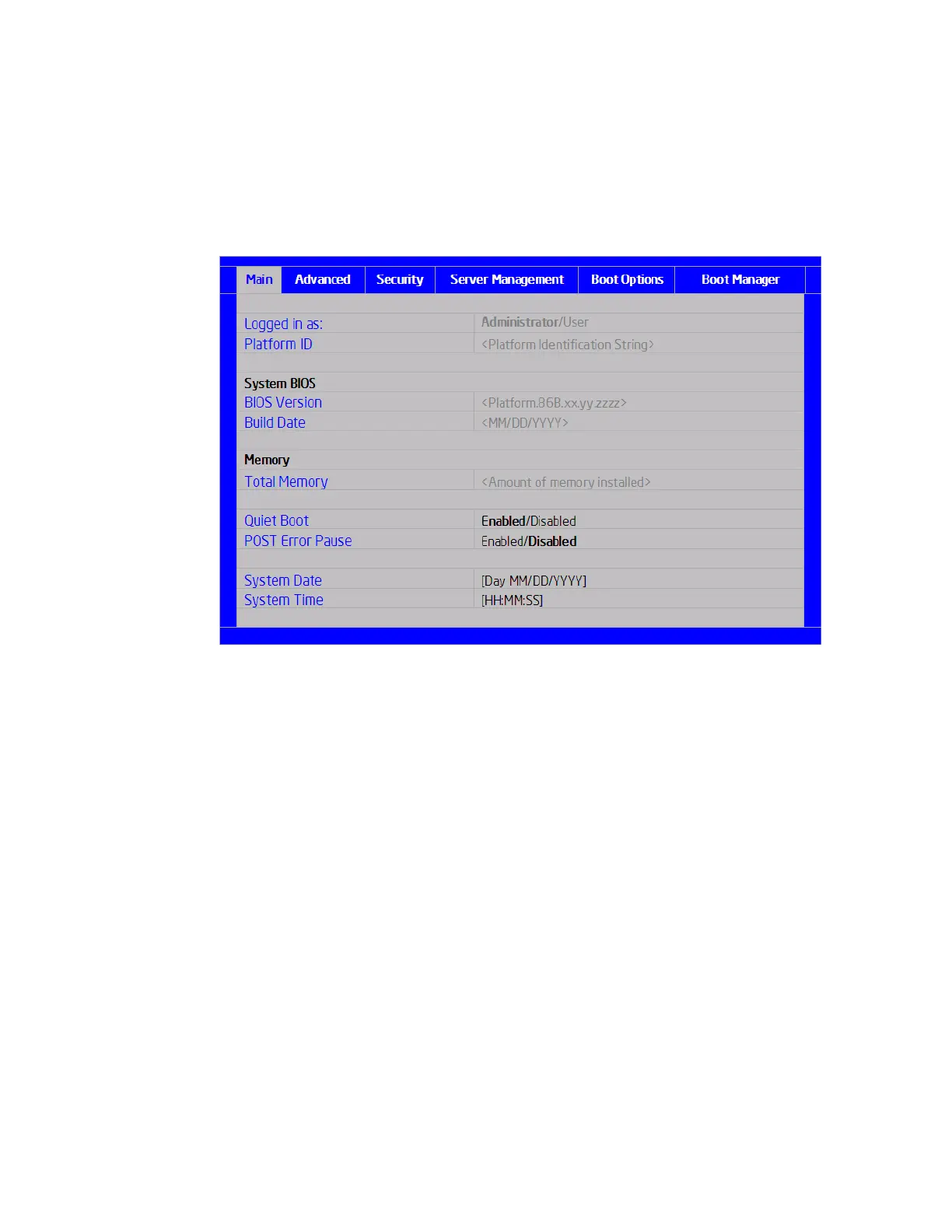

Figure 9. Main Screen
Screen Field Descriptions:
1. Logged in as:
Option Values: <Administrator/User>
Help Text: <None>
Comments:Information only. Displays password level that setup is running in:
Administrator or User. With no passwords set, Administrator is the default mode.
2. Platform ID
Option Values: < Platform ID>
Help Text: <None>
Comments:Information only. Displays the Platform ID for the board on which the BIOS is
executing POST.
3. BIOS Version
Option Values: <Current BIOS version ID>

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
