62 Intel® Server Board S1200BT Service Guide
Exit Screen (Tab)
The Exit screen allows the user to choose whether to save or discard the configuration
changes made on other Setup screens. It also allows the user to restore the BIOS settings
to the factory defaults or to save or restore them to a set of user-defined default values. If
Load Default Values is selected, the factory default settings (noted in bold in the tables in
this chapter) are applied. If Load User Default Values is selected, the system is restored to
previously saved user-defined default values.
To access this screen from the Main screen or other top-level Tab screen, press the right
or left arrow keys to traverse the tabs at the top of the Setup screen until the Exit screen is
selected.

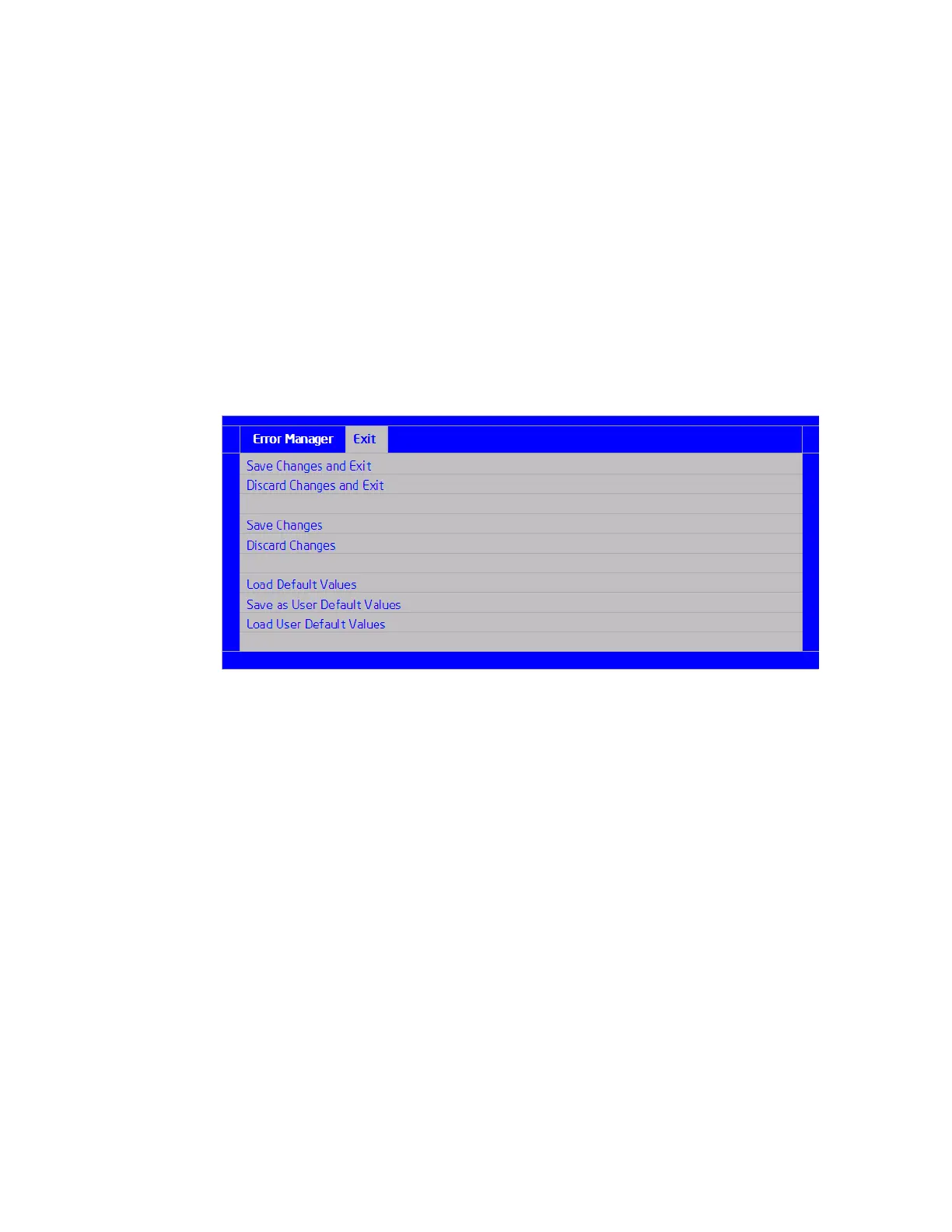

Figure 39. Exit Screen
Upgrading the BIOS
The upgrade utility allows you to upgrade the BIOS in flash memory. The code and data in
the upgrade file include the following:
• On-board system BIOS, including the recovery code, BIOS Setup Utility, and
strings.
• On-board video BIOS and other option ROMs for devices embedded on the server
board.
• OEM binary area
• Microcode
Preparing for the Upgrade
The following steps explain how to prepare to upgrade the BIOS, including how to record
the current BIOS settings and how to obtain the upgrade utility.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
