56 Intel® Server Board S1200BT Service Guide
PXE Network Device
BEV (Boot Entry Vector) Device
EFI Shell and EFI Boot paths
To access this screen from the Main screen or other top-level Tab screen, press the right
or left arrow keys to traverse the tabs at the top of the Setup screen until the Boot Options
screen is selected.

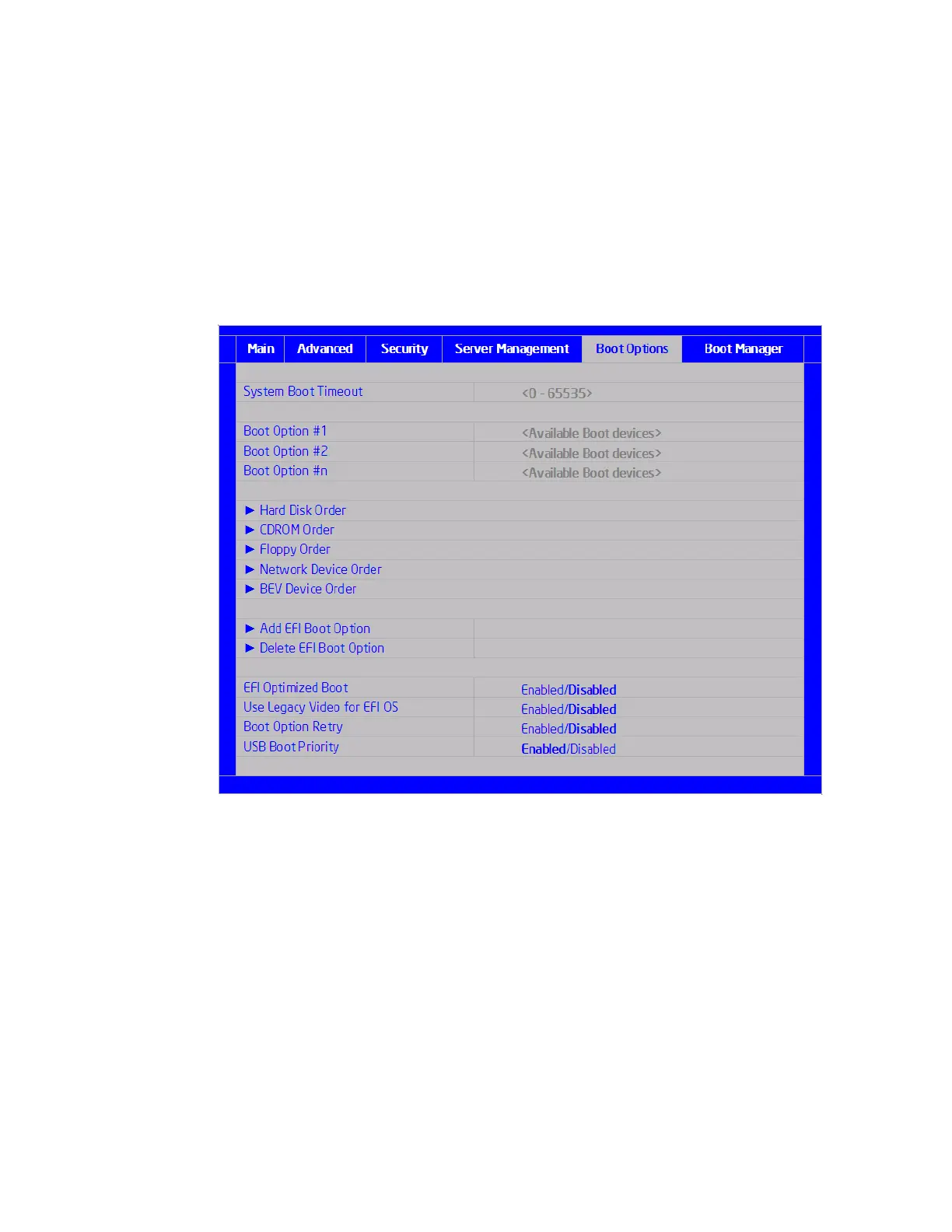

Figure 28. Boot Options Screen
Hard Disk Order
The Hard Disk Order screen allows the user to control the order in which BIOS attempts
to boot from the hard disk drives installed in the system. This screen is only available
when there is at least one hard disk device available in the system configuration.
Note: A USB Hard Disk drive or a USB Key device formatted as a hard disk will appear in
this section.
To access this screen from the Main screen, select Boot Options > Hard Disk Order. To
move to another screen, press the <Esc> key to return to the Boot Options screen, then
select the desired screen.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
