Intel® Server Board S1200BT Service Guide 39
To access this screen from the Main screen, select Advanced > Mass Storage Controller
Configuration. To move to another screen, press the <Esc> key to return to the Advanced
screen, then select the desired screen.

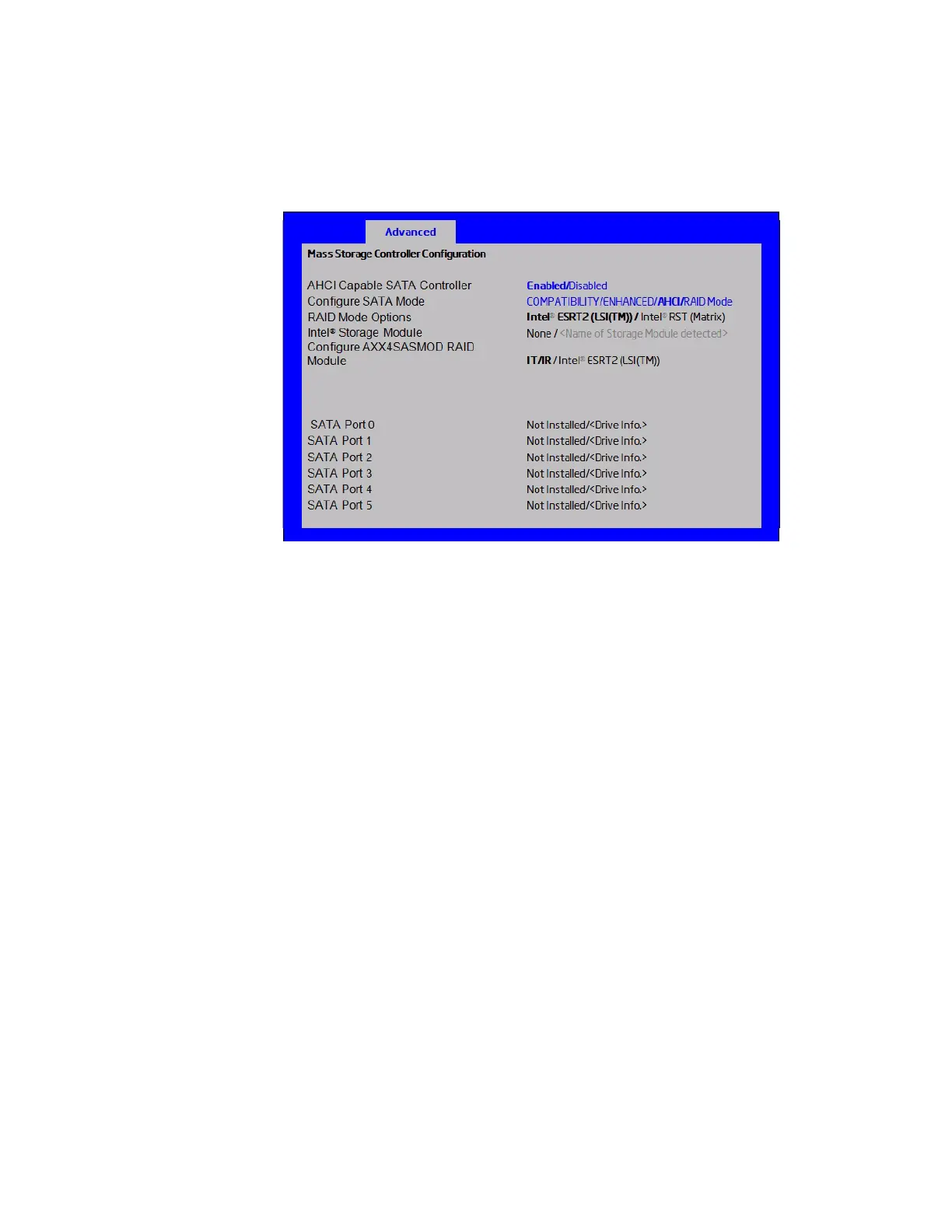

Figure 13. Mass Storage Controller Configuration Screen
1. AHCI Capable SATA Controller
Option Values:Enabled
Disabled
Help Text:AHCI capable SATA controller (also known as Onboard SATA Controller)
refers to the Advanced Host Controller Interface SATA device integrated into the chipset.
In order to utilize the AHCI capabilies, the AHCI option needs to be enabled in the SATA
Mode menu.
Comments:If the SATA Conroller is Enabled, then the mode of operation can be set using
following options. If it is Disabled, the SATA Ports will not operate. and any installed
SATA devices will be unavailable.
2. Configure SATA Mode
Option Values:Compatability
Enhanced
AHCI
RAID Mode
Help Text:
[Compatibility] provides PATA emulation on the SATA device, allowing the use of legacy
IDE/PATA drivers.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
