46 Intel® Server Board S1200BT Service Guide
Security Screen (Tab)
The Security screen allows the user to enable and set the user and administrative
password and to lock out the front panel buttons so they cannot be used. This screen also
allows the user to enable and activate the Trusted Platform Module (TPM) security
settings on those boards that support TPM.
To access this screen from the Main screen or other top-level Tab screen, press the right
or left arrow keys to traverse the tabs at the top of the Setup screen until the Security
screen is selected.

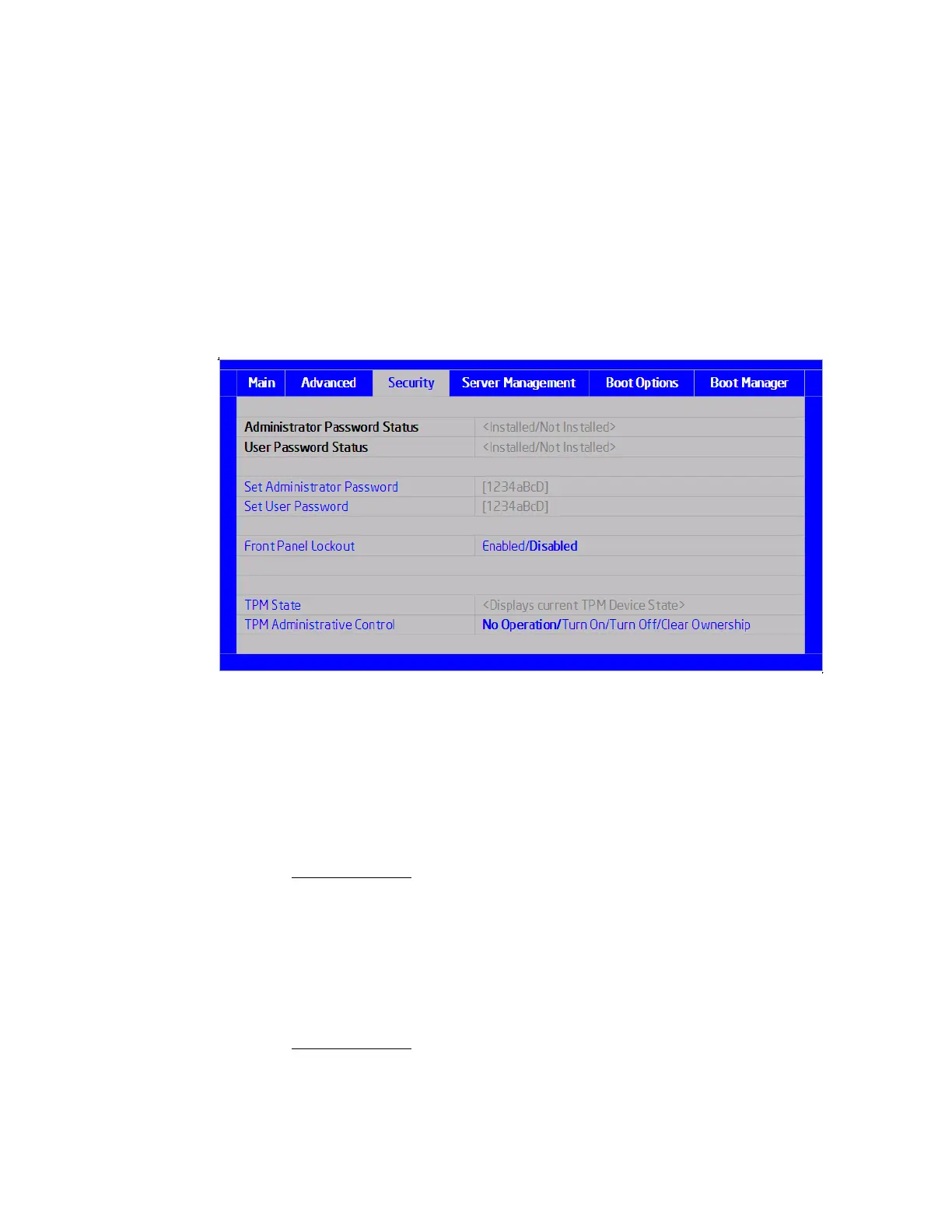

Figure 18. Security Screen
1. Administrator Password Status
Option Values:Installed
Not Installed
Help Text:<None>
Comments:Information only.
Indicates the status of the User Password.
2. User Password Status
Option Values:Installed
Not Installed
Help Text:<None>
Comments:Information only.
Indicates the status of the User Password.
3. Set Administrator Password
Option Values: [Entry Field]

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
