70 Intel® Server Board S1200BT Service Guide

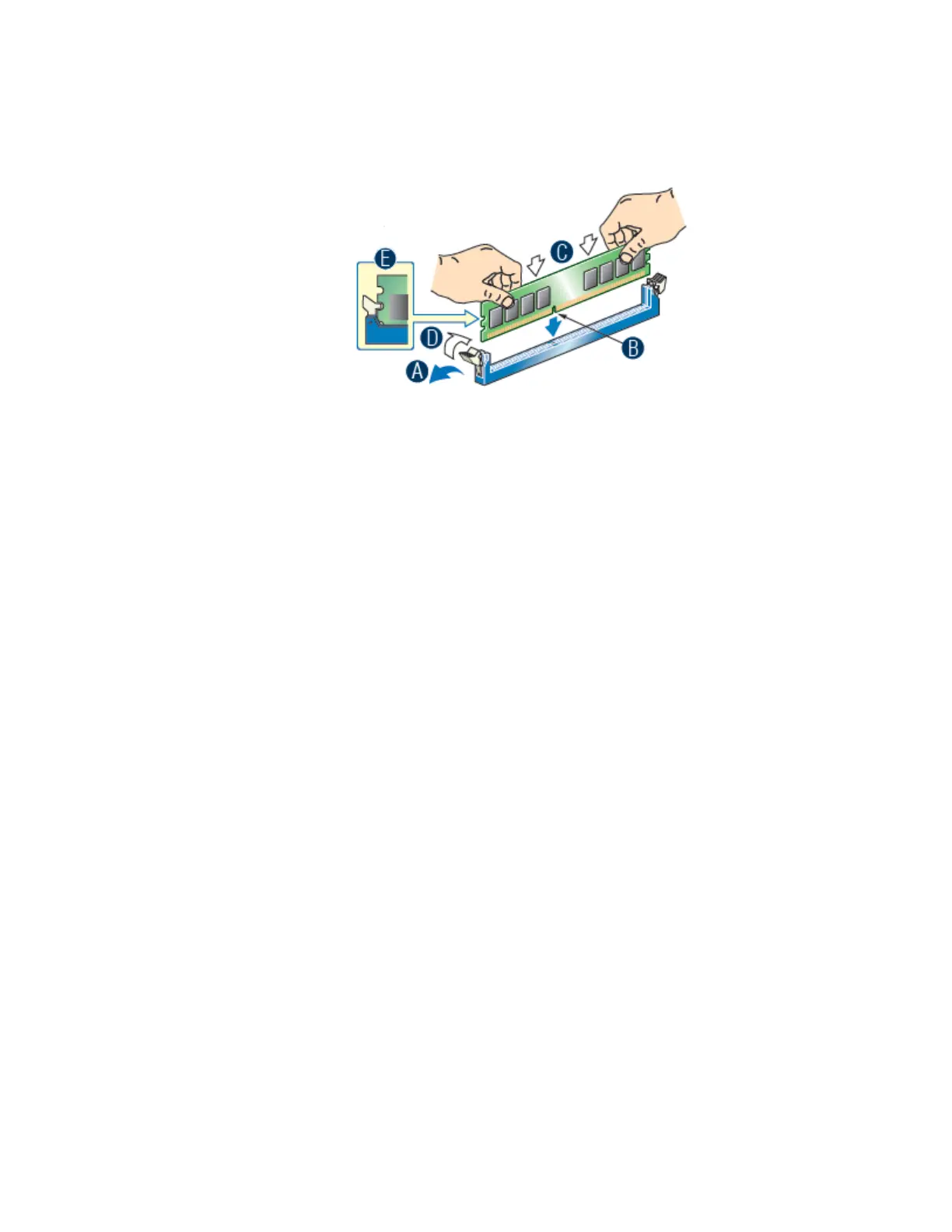

Figure 44. Installing Memory
5. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position (see letter “A” in Figure 44).
6. Holding the DIMM by the edges, remove it from its anti-static package.
7. Position the DIMM above the socket. Align the two small notches in the bottom
edge of the DIMM with the keys in the socket (letter “B” in Figure 44).
8. Insert the bottom edge of the DIMM into the socket (letter “C” in Figure 44).
9. When the DIMM is inserted, push down on the top edge of the DIMM until the
retaining clips snap into place ((letter “D” in Figure 44). Make sure the clips are
firmly in place (letter “E” in Figure 44).
10. Replace the server's cover and reconnect the AC power cord. Refer to the
documentation that came with your server chassis for instructions on installing the
server’s cover.
Removing DIMMs
To remove a DIMM, follow these steps:
1. Observe the safety and ESD precautions in “Safety Information”.
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Remove the AC power cord from the server.
4. Remove the server's cover. See the documentation that came with your server
chassis for instructions on removing the server's cover.
5. Gently spread the retaining clips at each end of the socket. The DIMM will lift from
the socket.
6. Holding the DIMM by the edges, lift it from the socket, and store it in an
anti-static package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the
DIMM sockets.
