Intel® Server Board S1200BT Service Guide 29
Processor Configuration
The Processor Configuration screen displays the processor identification and microcode
level, core frequency, cache sizes, Intel
®
QuickPath Interconnect information for all
processors currently installed. It also allows the user to enable or disable a number of
processor options.
To access this screen from the Main screen, select Advanced > Processor Configuration.
To move to another screen, press the <Esc> key to return to the Advanced screen, then
select the desired screen.

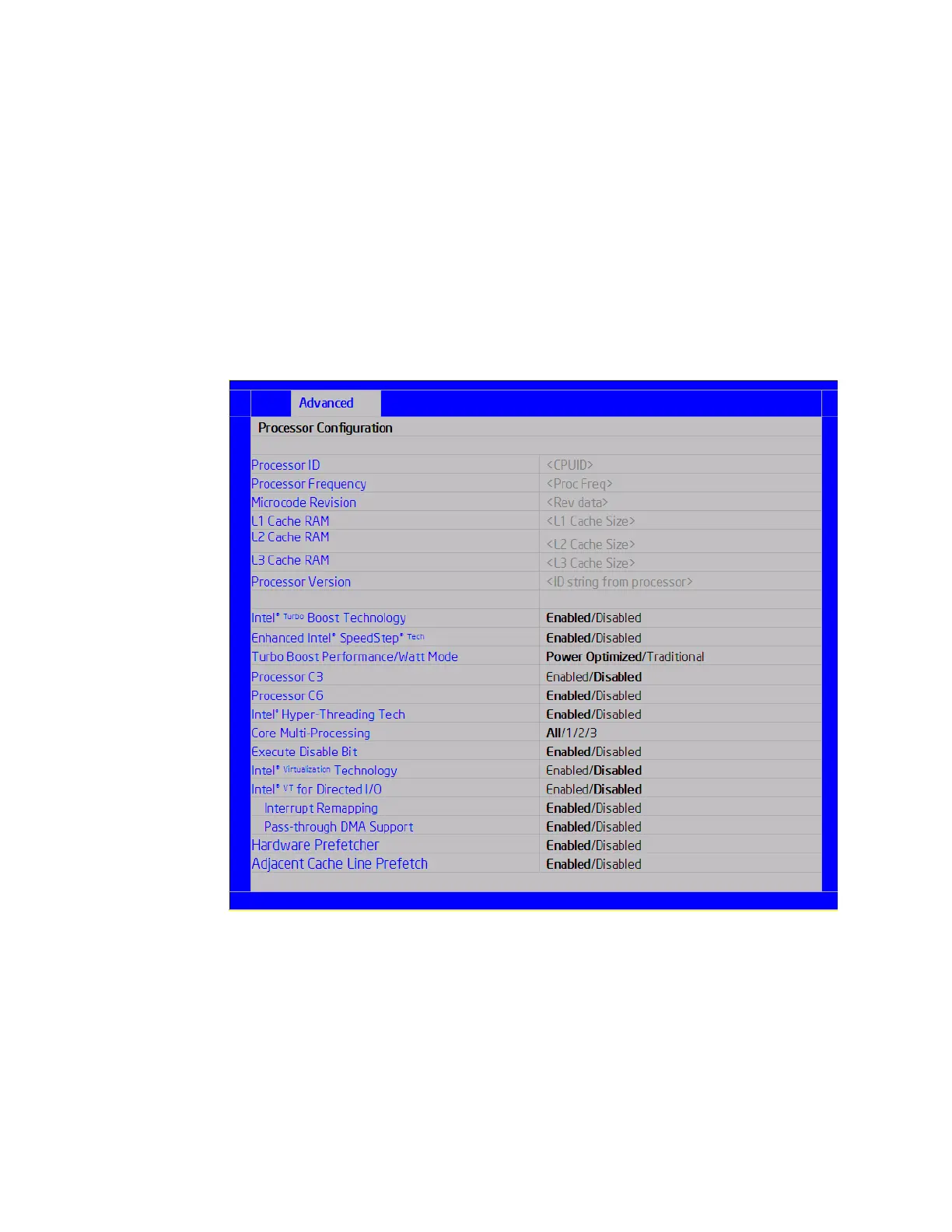

Figure 11. Processor Configuration Screen
Screen Field Descriptions:
1. Processor ID
Option Values:<CPUID>
Help Text:<None>

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
