Intel® Server Board S1200BT Service Guide 57

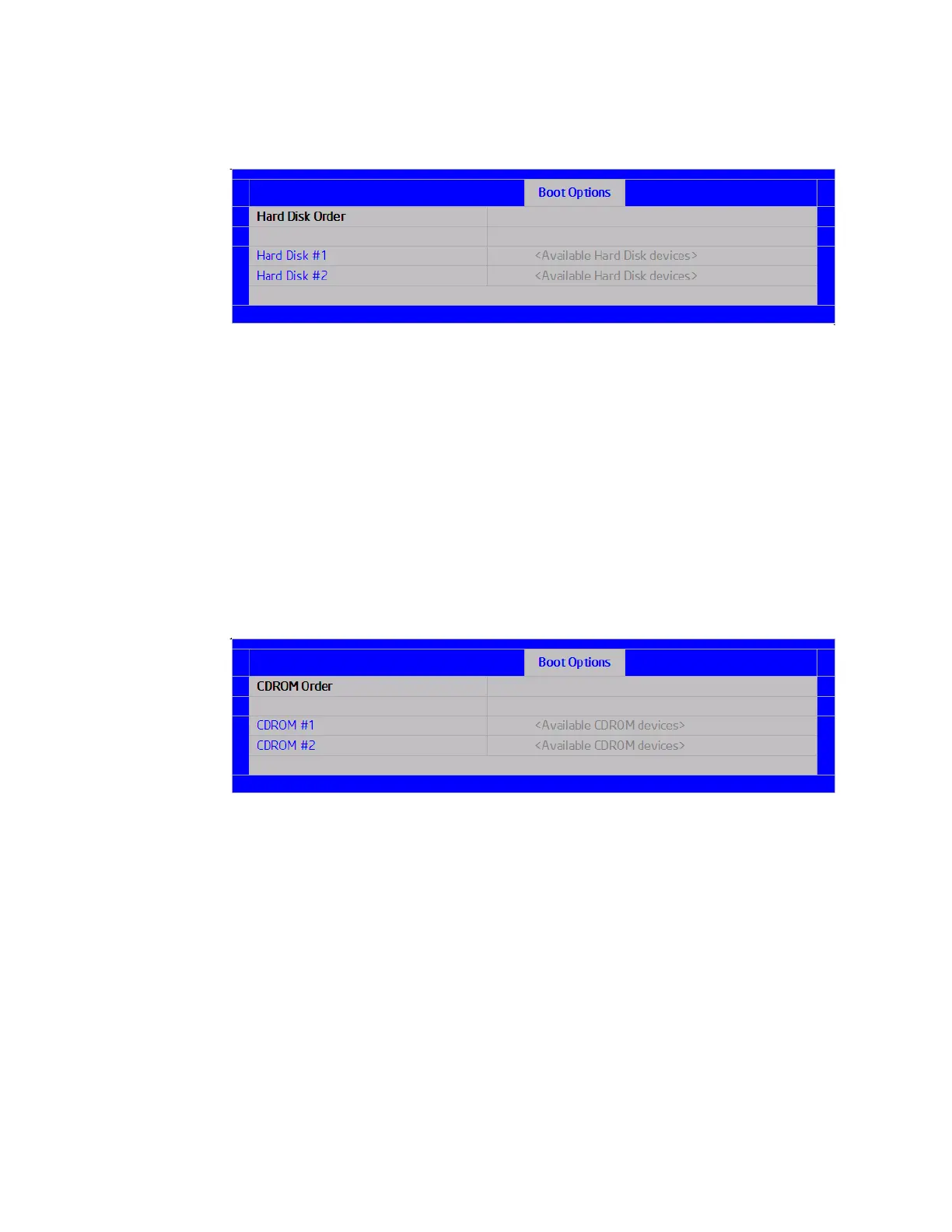

Figure 29. Hard Disk Order Screen
CDROM Order
The CDROM Order screen allows the user to control the order in which BIOS attempts to
boot from the CDROM drives installed in the system. This screen is only available when
there is at least one CDROM device available in the system configuration.
Note: A USB CDROM device will appear in this section.
To access this screen from the Main screen, select Boot Options > CDROM Order. To
move to another screen, press the <Esc> key to return to the Boot Options screen, then
select the desired screen.
Figure 30. CDROM Order Screen
Floppy Order
The Floppy Order screen allows the user to control the order in which BIOS attempts to
boot from the Floppy Disk drives installed in the system. This screen is only available
when there is at least one Floppy Disk (diskette) device available in the system
configuration.
Note: A USB Floppy drive or a USB Key device formatted as a diskette drive will appear in this
section.
To access this screen from the Main screen, select Boot Options > Floppy Order. To
move to another screen, press the <Esc> key to return to the Boot Options screen, then
select the desired screen.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
