Intel® Server Board S1200BT Service Guide 53
BMC LAN Configuration
The BMC configuration screen allows the Setup user to configure the BMC Baseboard
LAN channel and the RMM4 LAN channel, and to manage BMC User settings for up to
five BMC Users.
To access this screen from the Main screen, select Server Management > System
Information. To move to another screen, press the <Esc> key to return to the Server
Management screen, then select the desired screen.

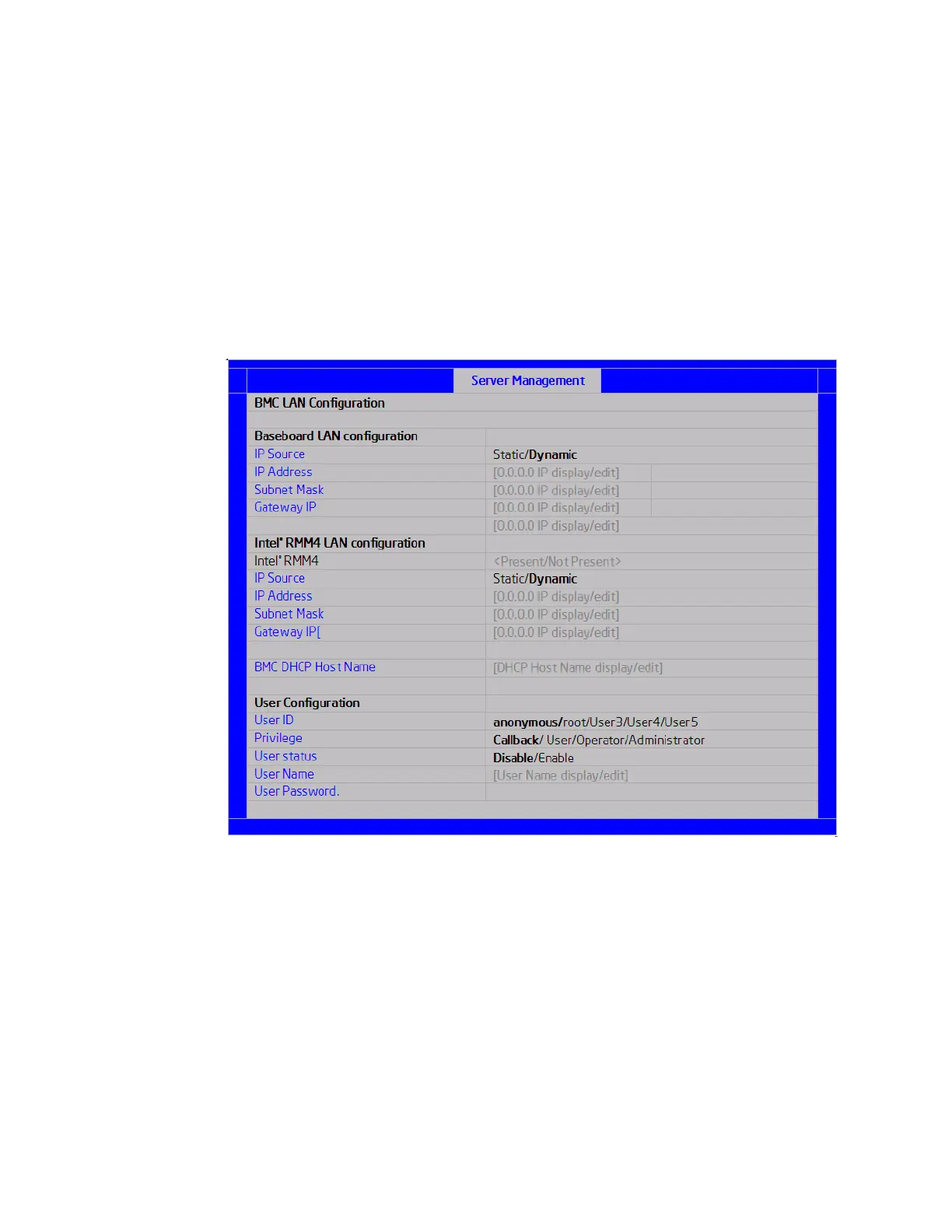

Figure 24. BMC LAN Configuration Screen (S1200BTL)

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
