Intel® Server Board S1200BT Service Guide 49
Server Management Screen (Tab)
The Server Management screen allows the user to configure several server management
features. This screen also provides an access point to the screens for configuring console
redirection, displaying system information, and controlling the BMC LAN configuration.
To access this screen from the Main screen or other top-level Tab screen, press the right
or left arrow keys to traverse the tabs at the top of the Setup screen until the Server
Management screen is selected.

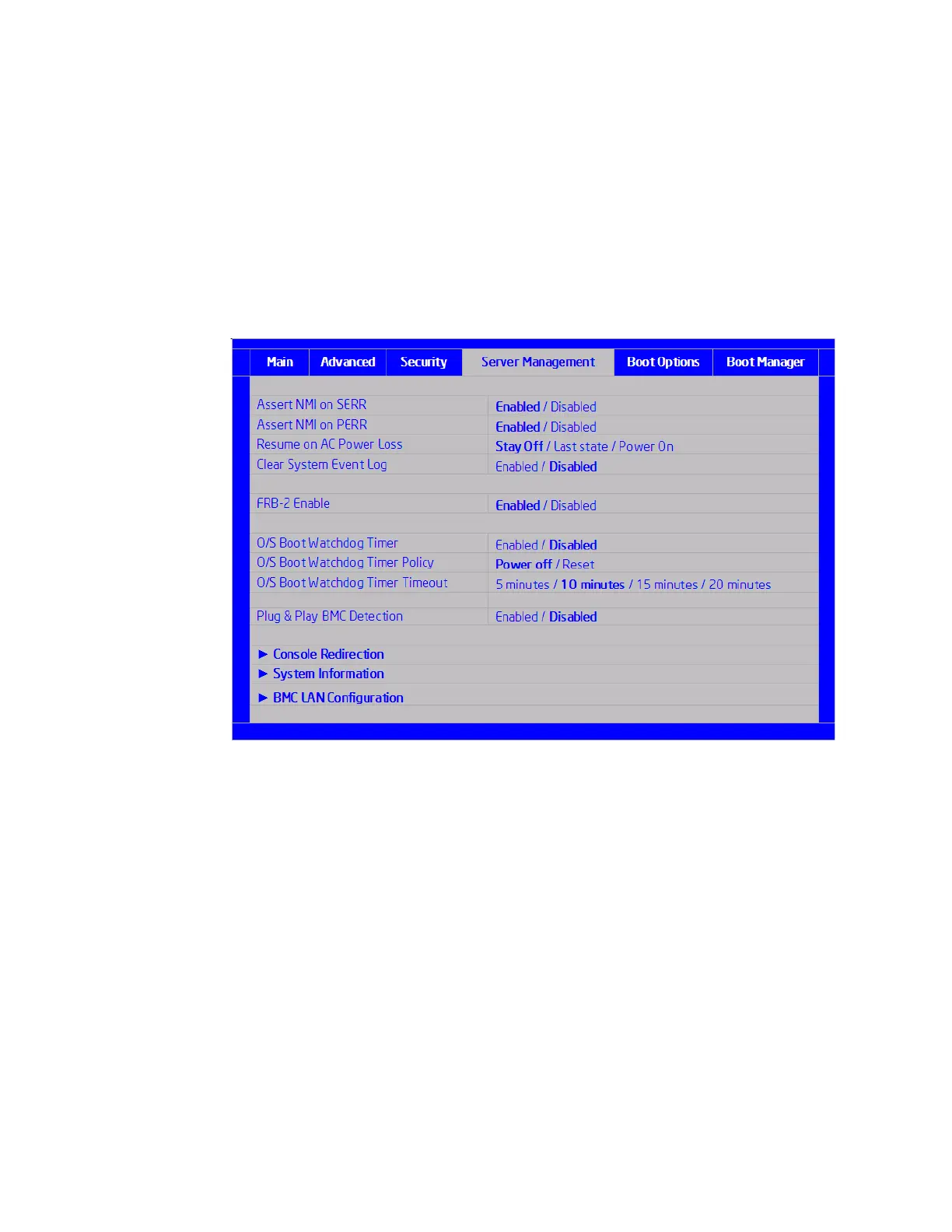

Figure 19. Server Management Screen (S1200BTL)
1. EuP LOT6 Off-Mode
Option Values:Enabled
Disabled
Help Text:
Enable/disable Ecodesign EuP LOT6 “Deep Sleep” Off-Mode for near-zero energy use
when powered off.
Comments:This option controls whether the system goes into “Deep Sleep” or more
conventional S5 “Soft-Off” when powered off. S5 can wake up faster and can Wake on
LAN, but Deep Sleep uses less energy.
This option will not appear on platforms which do not support EuP LOT6 Off-Mode. For
details on any platform.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
