44 Intel® Server Board S1200BT Service Guide
Comments:Enables/disables PCI/PCIe PME# signal to generate Power Management
Events (PME) and ACPI Table entries required for Wake on LAN (WOL). However, note
that this will enable WOL only with an ACPI-capable Operating System which has the
WOL function enabled.
System Acoustic and Performance Configuration (for Intel® Server Board
S1200BTS)
The System Acoustic and Performance Configuration screen allows the user to configure
the thermal control behavior of the system in order to balance performance and acoustics
with power consumption and heat generation.
To access this screen from the Main screen, select Advanced > System Acoustic and
Performance Configuration. To move to another screen, press the <Esc> key to return to
the Advanced screen, then select the desired screen.

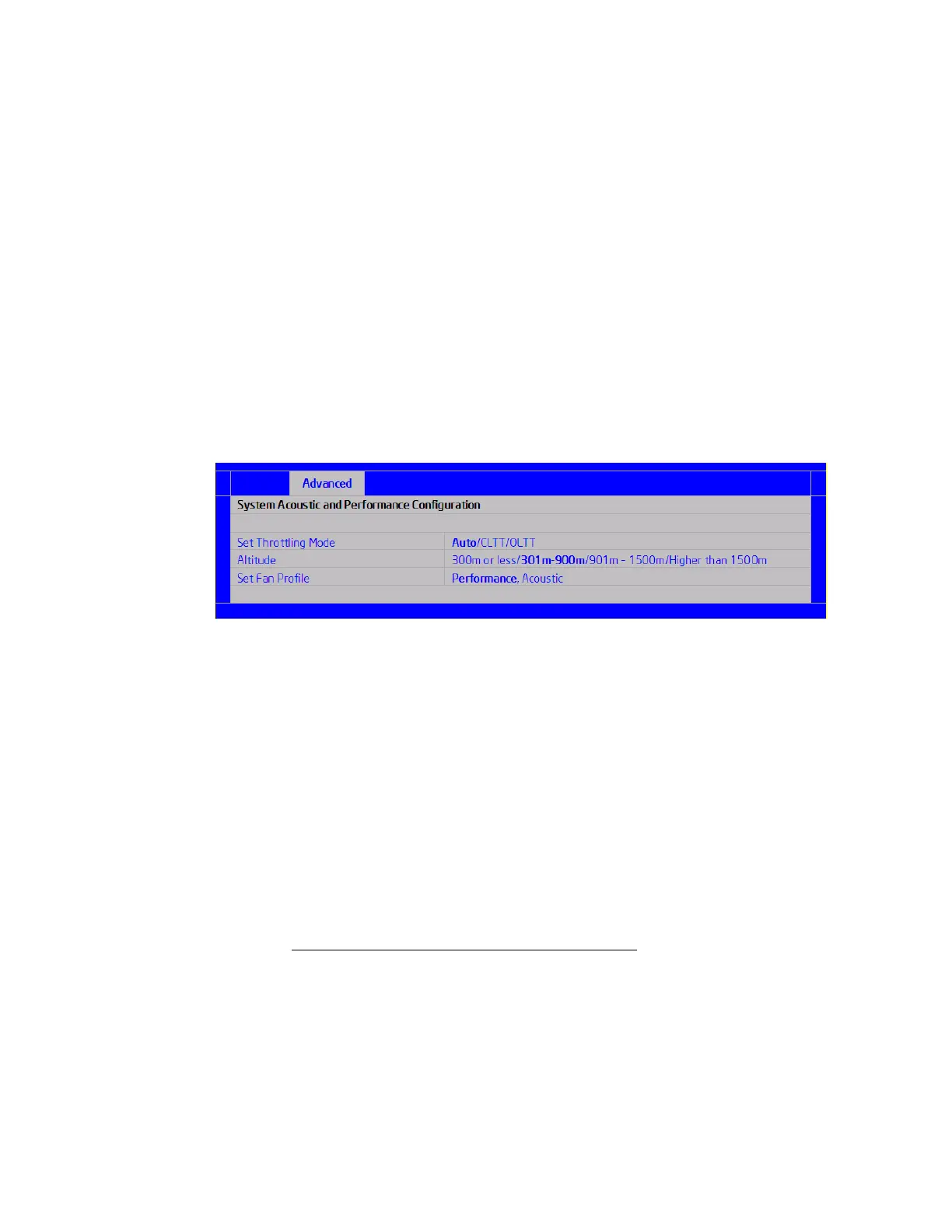

Figure 17. System Acoustic and Performance Configuration
1. Set Throttling Mode
Option Values: Auto
Help Text:
[Auto] – Auto Throttling mode.
[CLTT] – Closed Loop Thermal Throttling Mode.
[OLTT] – Open Loop Thermal Throttling Mode.
Closed Loop Throttling Mode is supported only when ECC DIMM plugged. Open Loop
Throttling Mode is not supported.
Comments:Information only, for S1200BT boards with BMC:
. CLTT Mode is the only
mode supported. This will always be Auto, since there is no choice. If CLTT Mode cannot
be established, then the fallback mode is no memory thermal-based throttling.
2. Altitude
Option Values:300m or less
301m-900m
