16 Intel® Server Board S1200BT Service Guide

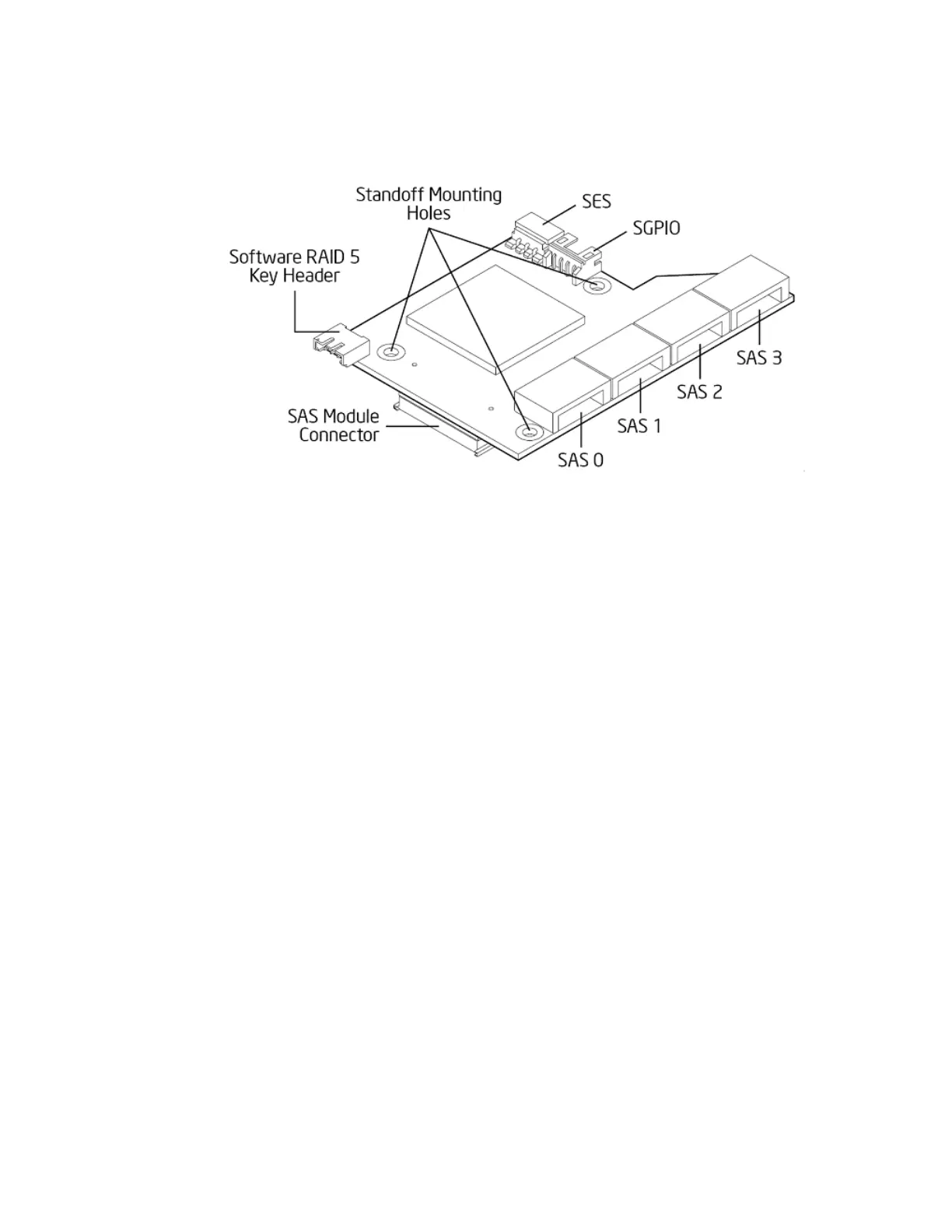

Figure 8. Intel
®
SAS Entry RAID Module
Intel® Remote Management Module 4
Intel
®
Server Board S1200BTL support Intel
®
Remote Management Module 4 solution.
For the detail installation and configuration, please go to
http://www.intel.com/support/motherboards/server to get the detail information.
IT/IR RAID Mode
Supports entry hardware RAID 0, RAID 1, and RAID10/10E and native SAS pass
through mode.
When Intel
®
Embedded Server RAID Technology II is enabled with the SAS Module
AXX4SASMOD, enclosure management is provided through the SAS_SGPIO or SES
connector on the SAS Module AXX4SASMOD when a cable is attached between this
connector and the backplane or I2C interface.
Note: For help with navigating the BIOS Setup utility, refer to the Intel
®
Server Board S1200BT
Technical Product Specification.

Intel S1200BT Specifications

General

Chipset	Intel C204
Socket	LGA 1155
Form Factor	ATX
Memory Type	DDR3
Max Memory	32 GB
Memory Slots	4
PCIe x16 Slots	1
PCIe x4 Slots	1
PCI Slots	2
SATA Ports	6
Ethernet Ports	2
PCIe x8 Slots	1
Network	Intel 82574L
RAID Support	0, 1, 5, 10
