Appendix B — EA20X Imager
88 ED40 Decode Board Integration Guide

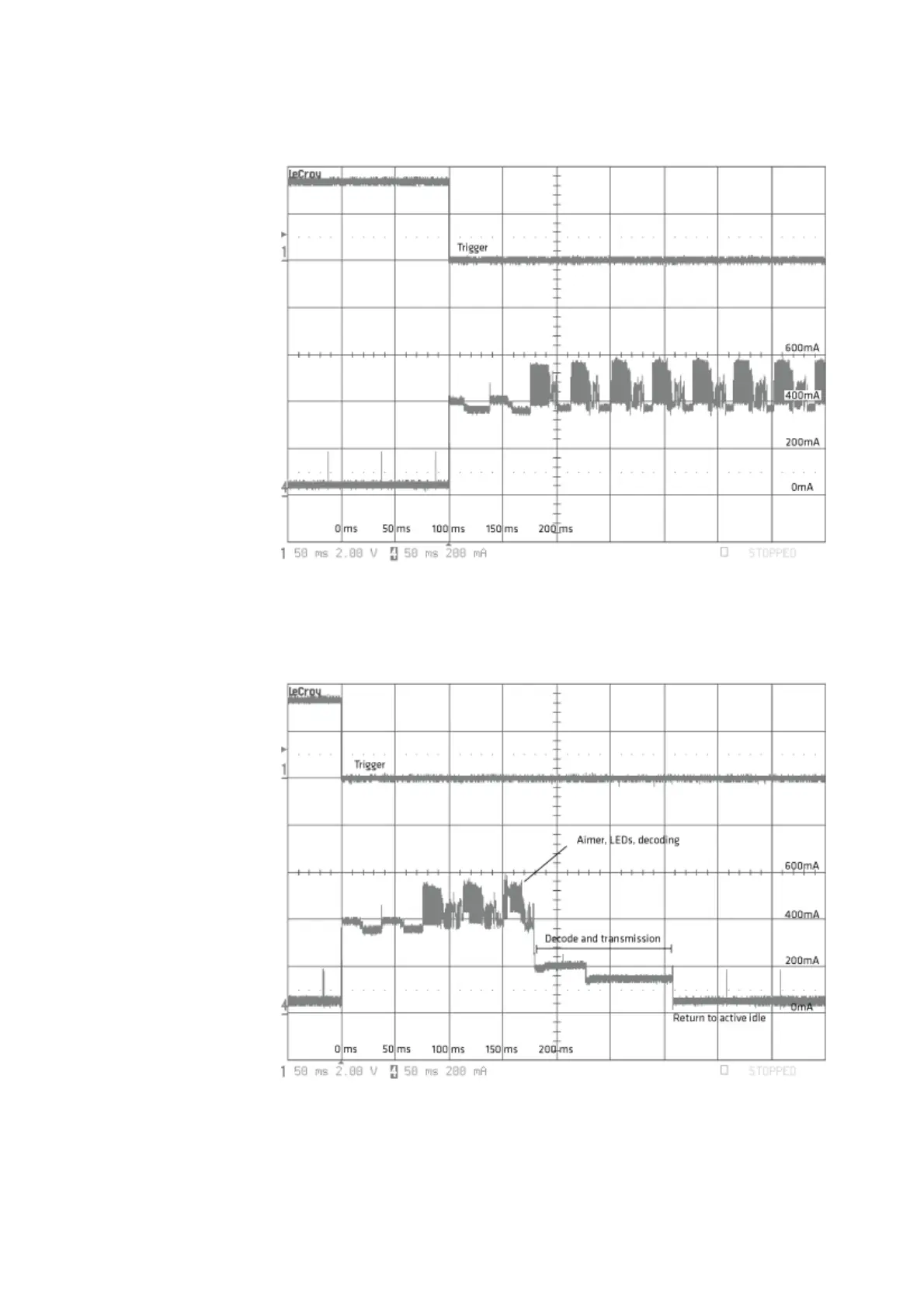

Active Idle to Scan Inrush Current
EA20X + ED40 Active Idle to Scan Inrush Current (RS-232): Trigger pulled low or trigger
pressed to initiate a scan.
Scanning Current
EA20X + ED40 Scanning Current (RS-232)
