Appendix D — EA30 Imager
132 ED40 Decode Board Integration Guide
Peak Current
The peak current rises on contacts 20, 21, and 22 as the illumination level
increases. Maximum peak current is 1200 mA when using full illumination (see
Motion Tolerance Table). The length of time the peak current lasts depends on
the exposure time. For more details on peak current with maximum exposure
time see the EA30 Integration Guide.

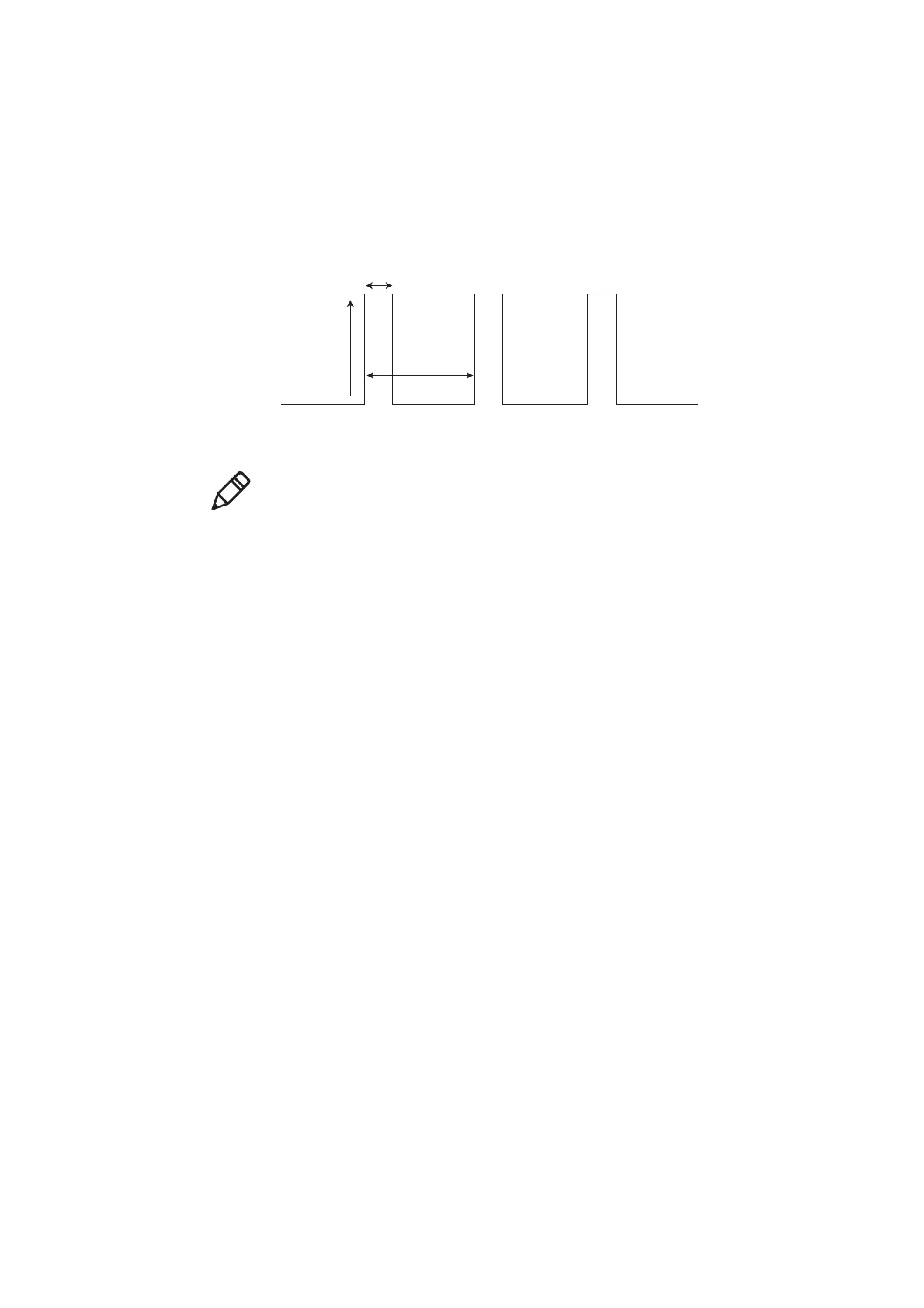

Peak Current Diagram: For contacts 20, 21, and 22.
Peak level
Exposure time
Frame time
Note: Frame time = 1/Frame rate (depending on the image size).
