Chapter 4 — ED40 Setup
ED40 Decode Board Integration Guide 23
Basic Setup with Configuration Bar Codes
This section provides you with the bar codes necessary for a basic setup. For
advanced setup options, see “Advanced Setup with Configuration Bar Codes”
on page 30. For all setup options use EasySet.
Reset Factory Defaults
Before setup you may need to reset the factory defaults in your ED40 for a fresh
start. This bar code resets factory defaults for all parameters except locked
parameters.
Interface
Depending on the interface used, you may need to setup the parameters for
communication.
RS-232 Interface Parameters
The default RS-232 settings are 57600 baud rate, 8 data bits, and no parity. Data
bits and parity are fixed ISCP parameters that can only be changed when ISCP is
not active. An asterisk symbol (*) indicates the default value.
Baud Rate

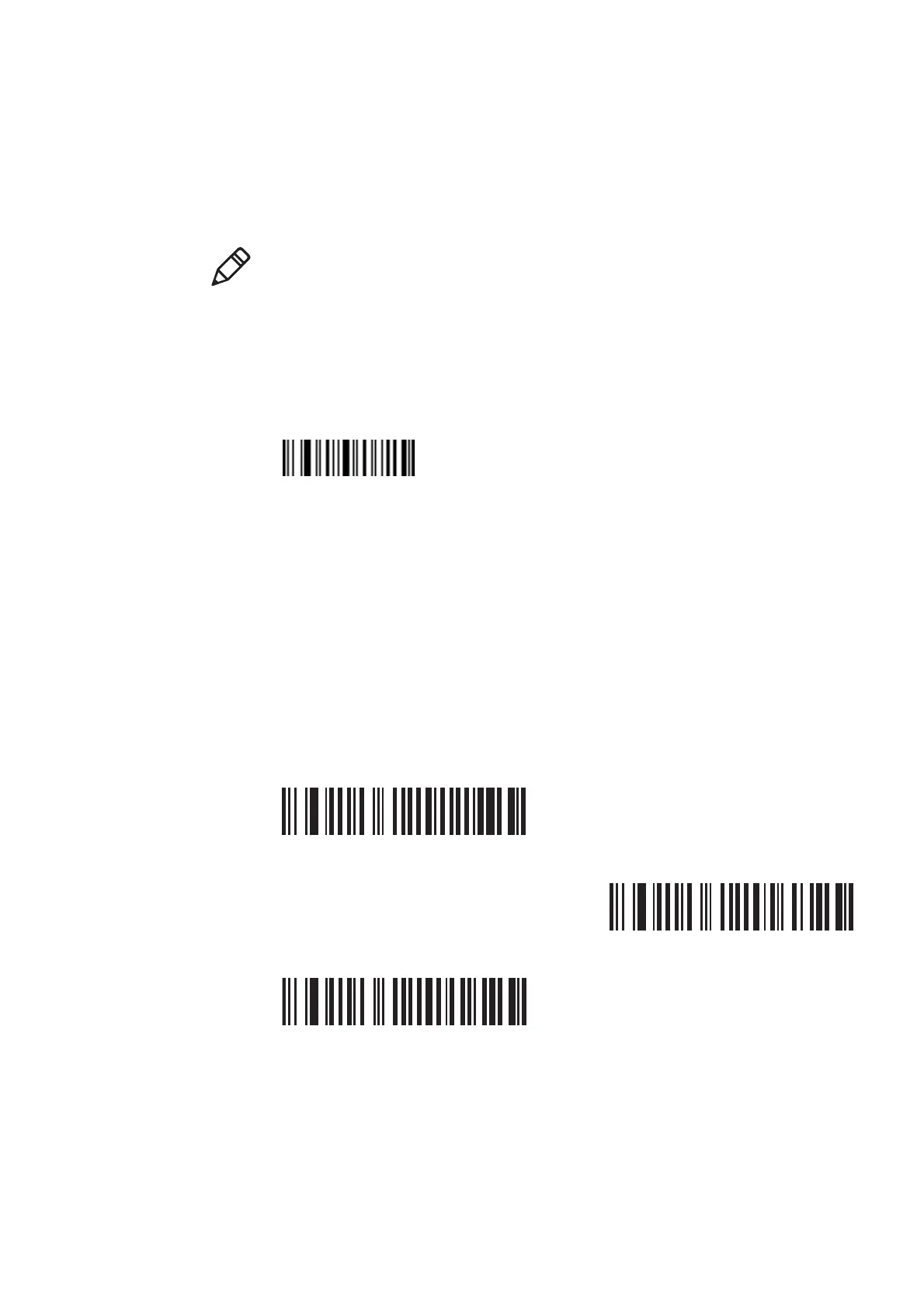

Scan one of these bar codes to set the baud rate.
Note: All default values in this section are indicated with a (*).
Reset factory defaults
CCMD 40 06
38400
SW 63 40 09
57600 (*)
SW 63 40 0A
115200
SW 63 40 0B
