Intermec ED40 - EA21 Reading Distances; Typical Reading Distances

Appendix C — EA21 Imager
ED40 Decode Board Integration Guide 101
EA21 Reading Distances
All distances are measured from the front of a non-integrated scan engine using
Grade A symbologies and an Intermec decoder. Scan rate is 30 frames/sec. An exit
window will reduce reading distances by about 4%.

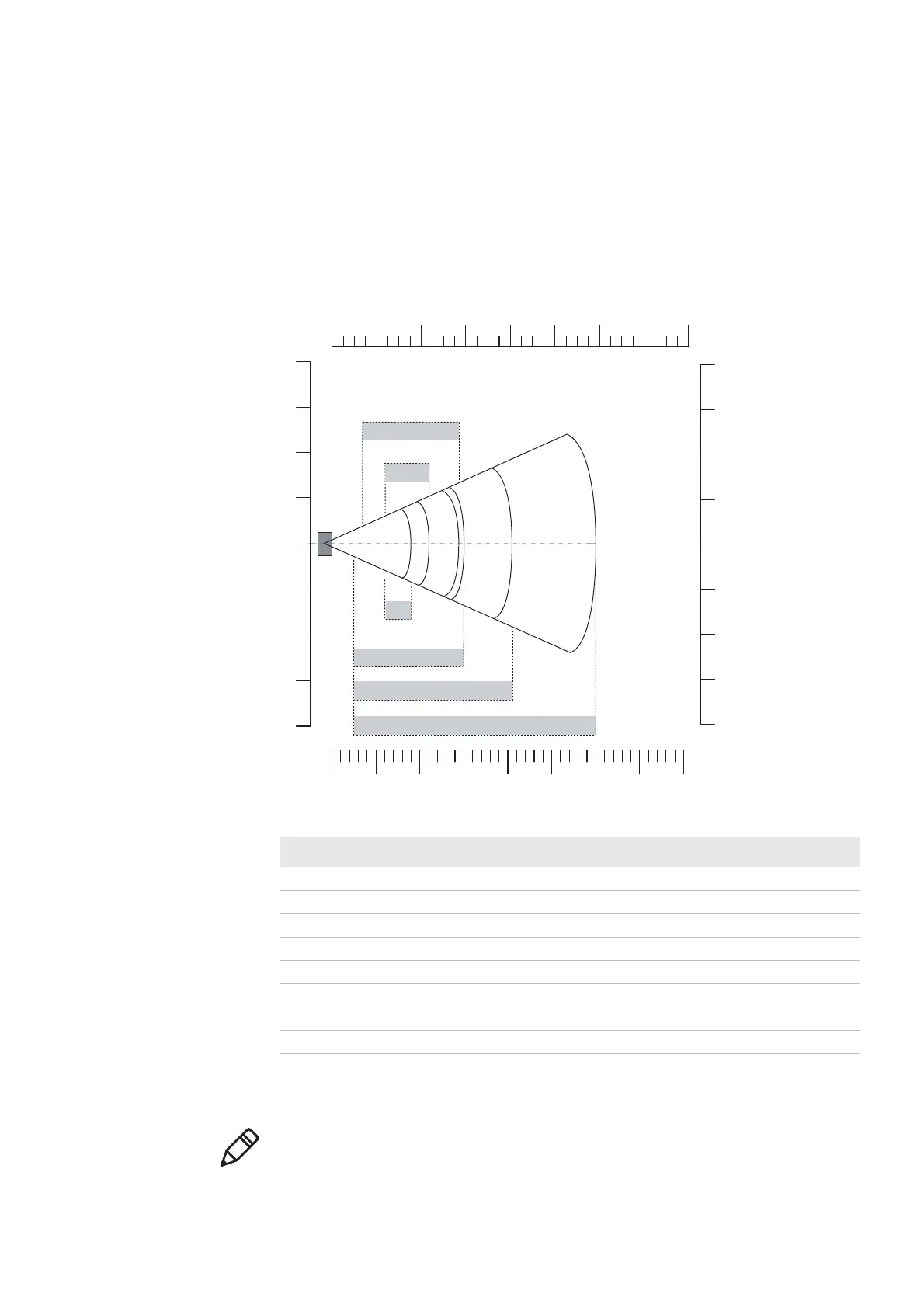

Typical Reading Distances
These are typical reading distances measured in an office environment (250 lux).
EA21 Typical Reading Distances
Symbology Density Minimum Distance Maximum Distance
Code 39 0.15 / 6 mils 12 cm / 4.72 in 18 cm / 7.09 in
0.25 mm / 10 mils 5 cm / 1.97 in 30 cm / 11.81 in
0.5 mm / 20 mils 5 cm / 1.97 in 60 cm / 23.62 in
1 mm / 40 mils 9 cm / 3.54 in 95 cm / 37.40 in
UPC/EAN 100% 0.33 mm / 13 mils 5 cm / 1.97 in 41 cm / 16.14 in
DataMatrix 0.25 mm / 10 mils 12 cm / 4.72 in 22 cm / 8.66 in
0.38 mm / 15 mils 8 cm / 3.15 in 35 cm / 13.78 in
PDF417 0.25 mm / 10 mils 7 cm / 2.75 in 29 cm / 11.42 in
0.38 mm / 15 mils 7 cm / 2.75 in 44 cm / 17.32 in
cm
PDF417 10 mils
0.15mm/6 mils
0.25 mm / 10 mils
0.5 mm / 20 mils
Data Matrix 10 mils
in
0" 32"28"24"20"16"12"8"4"
08070605040302010
100% contrast UPC EAN
0"
4"
8"
0
10
20
12"
16"
30
40
16"
12"
8"
4"
40
30
20
10
Note: Minimum distances depend on the length of the bar code.
