Chapter 2 — Mechanical Integration
6 ED40 Decode Board Integration Guide

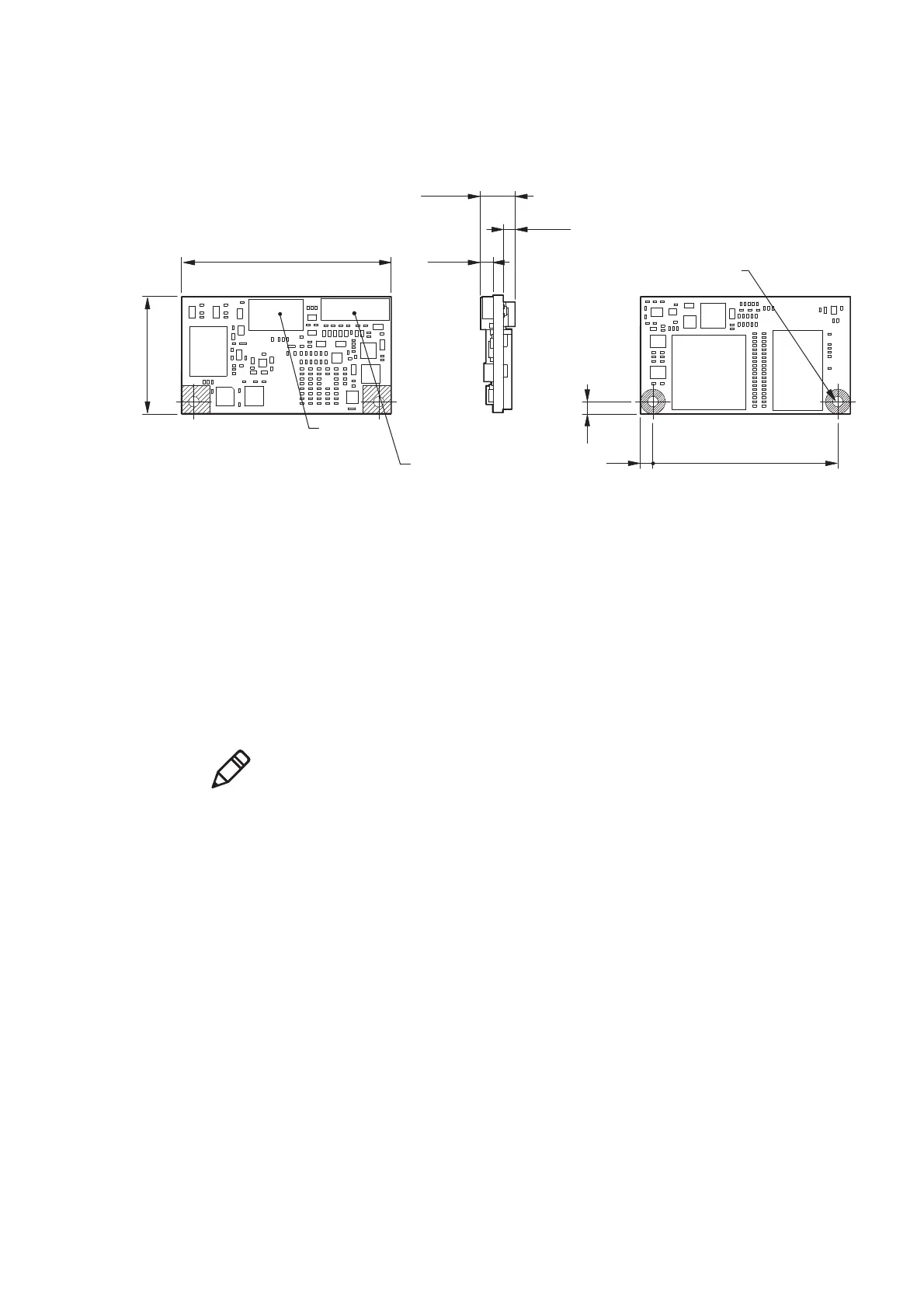

Mechanical Dimensions
ED40 Mechanical Dimensions: Tolerances = ± 0.20 mm (0.008 in).
Ribbon Cable
There are two ribbon cables for the ED40:
• Cable connecting the ED40 decode board to the host
• Cable connecting the imager to the ED40 decode board
This section will give information only on the ribbon cable connecting the ED40
to the host.
34 mm (1.34 in)
19 mm
(0.75 in)
5.6 mm
(0.22 in)
2 mm
(0.08 in)
2 mm
(0.08 in)
2.0 mm
(0.08 in)
2.0 mm
(0.08 in)
30 mm
(1.18 in)
Diameter 1.7 mm (0.07 in)
(2 places) with ground fill
around the holes.
Imager Connector
Host Connector
Note: For information on the ribbon cable connecting the imager to the ED40,
see the appendix for your imager in the back of this document.
