Appendix B — EA20X Imager
90 ED40 Decode Board Integration Guide

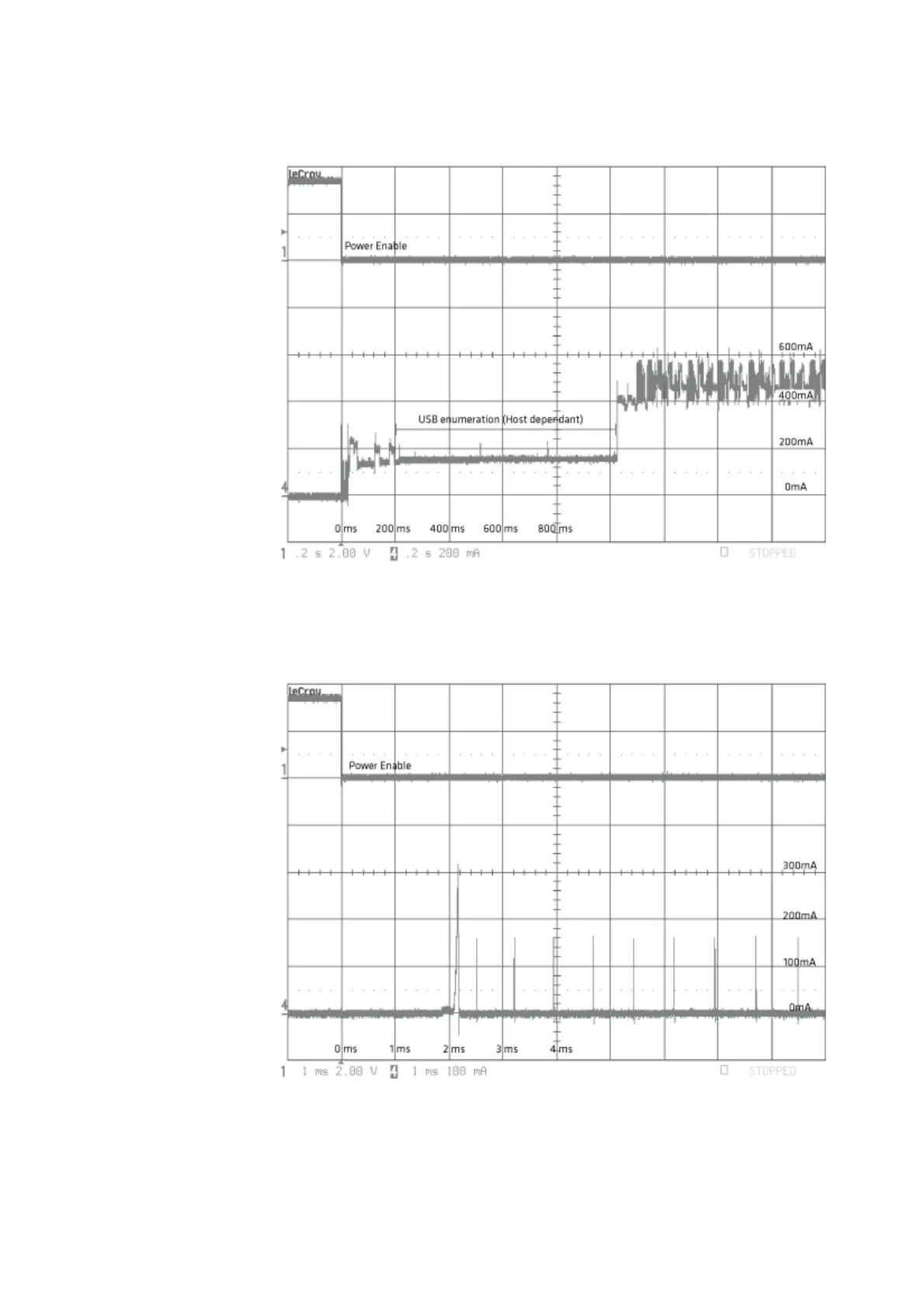

Power-Up with Power Enable Inrush Current 1
EA20X + ED40 Power-Up with power enable Inrush Current 1 (USB): Power enable switched
from high to low.
Power-Up with Power Enable Inrush Current 2 (Zoom)
EA20X + ED40 Power-Up with power enable Inrush Current 2 (Zoom) (USB): Power enable
switched from high to low. This is a zoom in on the previous graphic.
