Appendix A — EA11 Imager
ED40 Decode Board Integration Guide 69

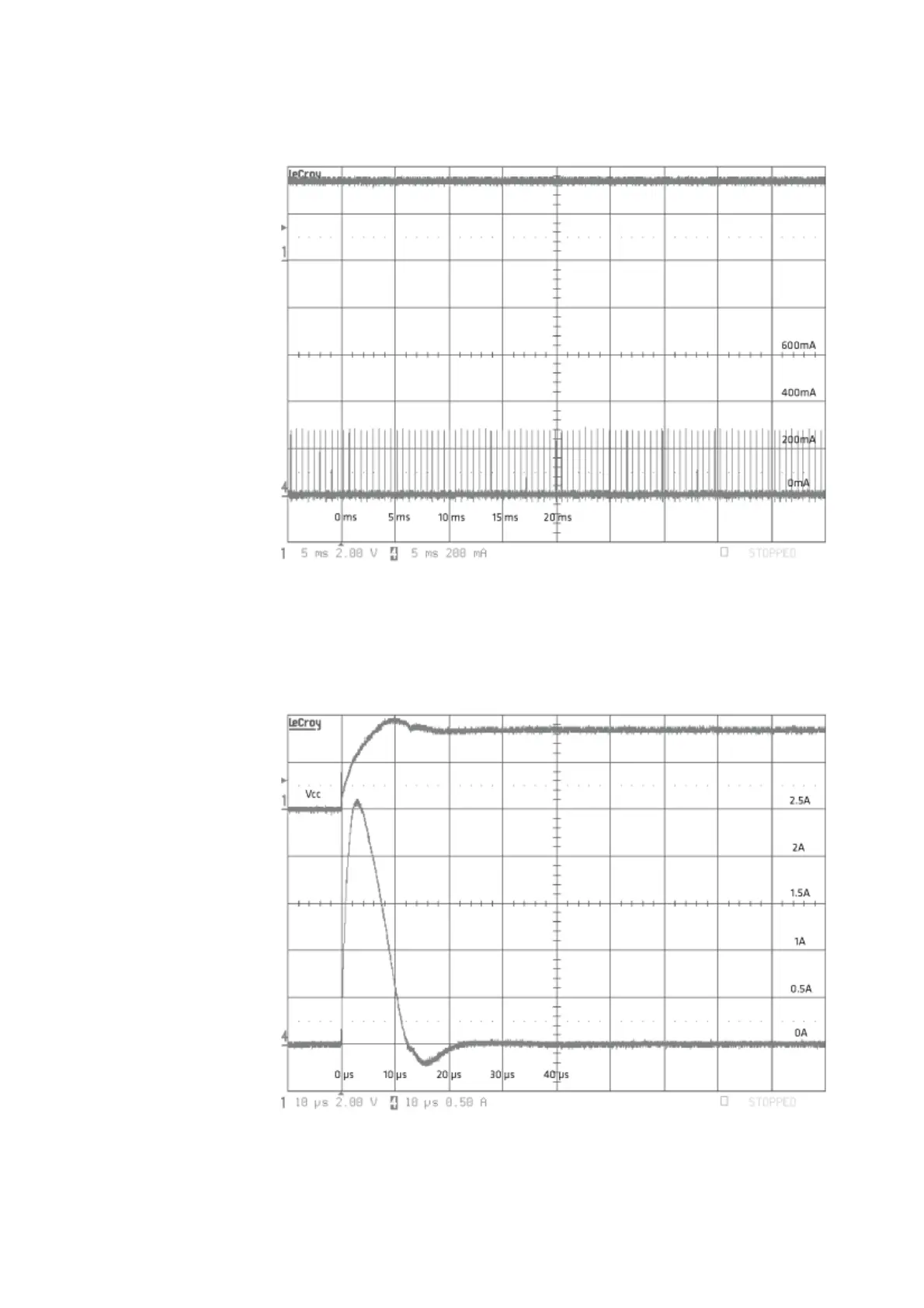

Hibernate Current
EA11 + ED40 Hibernate Current (RS-232)
Using a USB Cable
Power-Up with Vcc Inrush Current
EA11 + ED40 Power-Up with Vcc Inrush Current (USB): Power enable and trigger low.
