Appendix B — EA20X Imager
ED40 Decode Board Integration Guide 91

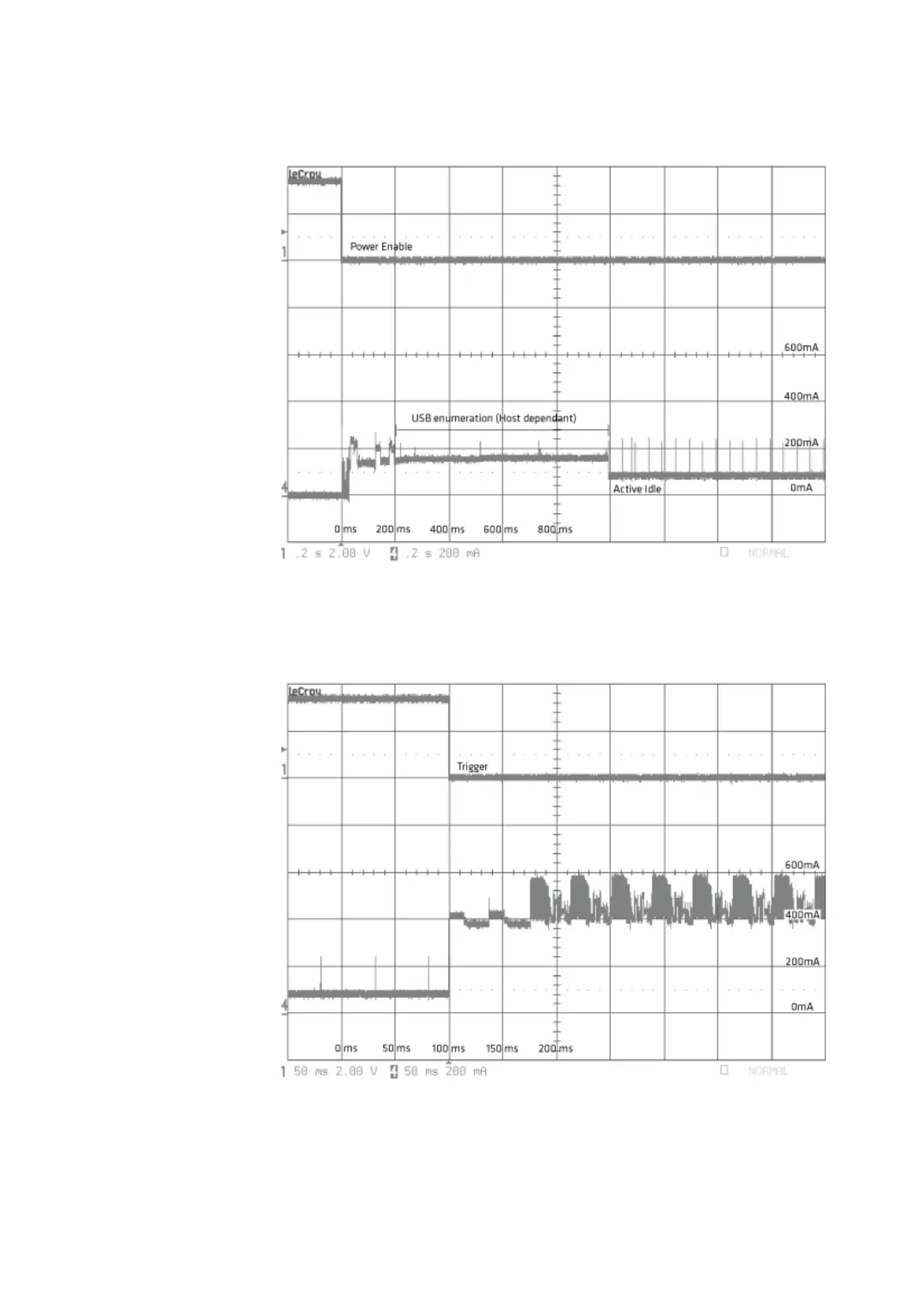

Power-Up (Vcc) Inrush Current to Active Idle
EA20X + ED40 Power-Up (Vcc) Inrush Current to Active Idle (USB): Power enable low,
trigger high.
Active Idle to Scan Inrush Current
EA20X + ED40 Active Idle to Scan Inrush Current (USB): Trigger pulled low or trigger
pressed to initiate a scan.
