Appendix D — EA30 Imager
ED40 Decode Board Integration Guide 133
Mechanical Dimension
The EA30 imager is mounted on the ED40 decode board using a mounting
bracket (available from Intermec).

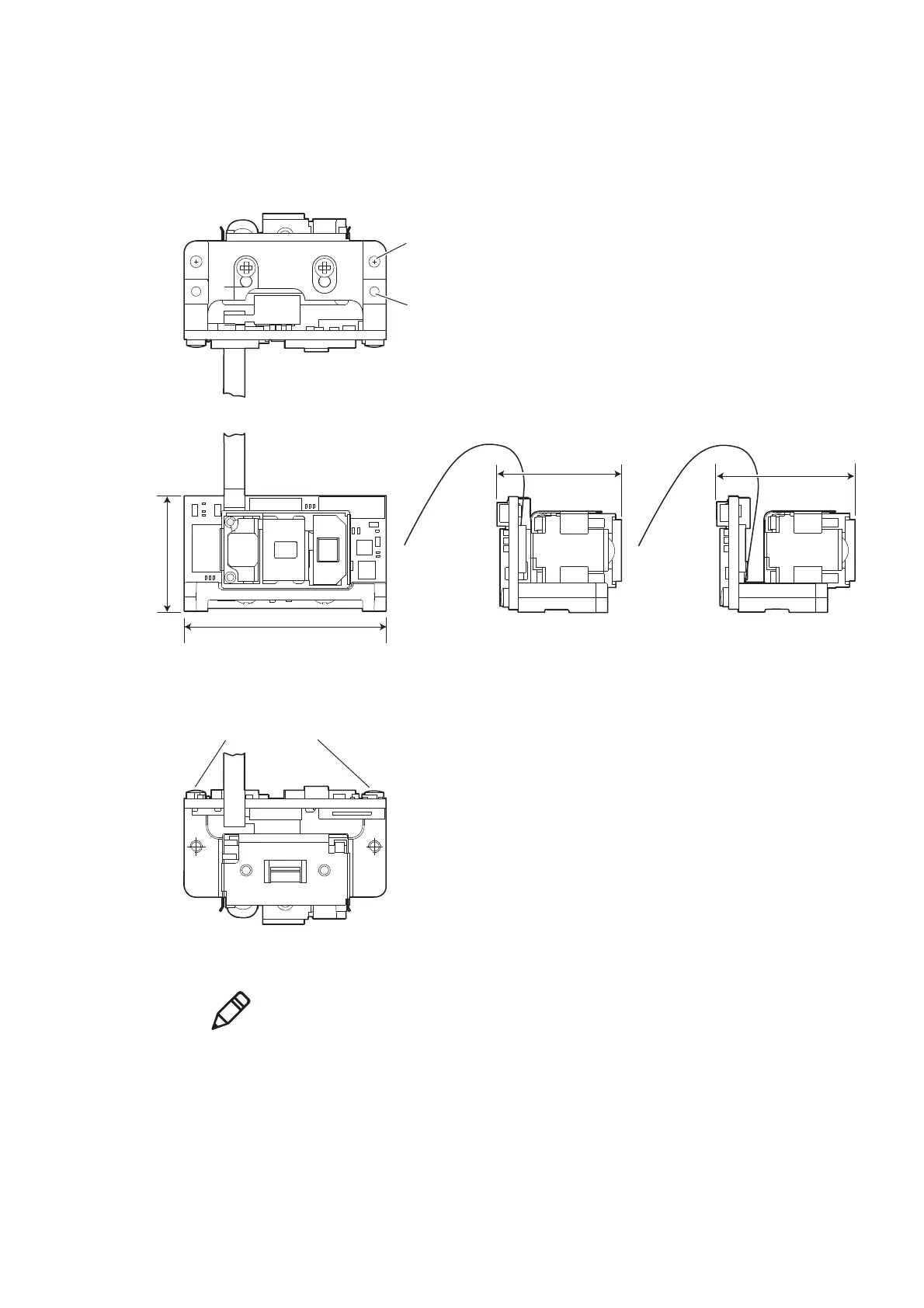

EA30 Mounted on the ED40 Decode Board: Tolerances = ± 0.20 mm (0.008 in).
Positioning holes (2 places)
Mounting holes (2 places)
19.5 mm
0.77 in
34 mm
1.34 in
M1.6 screws (2) to mount the PCB to bracket:
max torque 19 Ncm (1.68 lb-in) ± 1 Ncm (0.09 lb-in)
20.9 mm
0.82 in
23.2 mm
0.91 in
Imager Position 1
Imager Position 2
Note: There are two positions for mounting the imager. See “Mounted Imager
Position” on page 135 for details.
