Appendix D — EA30 Imager

126 ED40 Decode Board Integration Guide

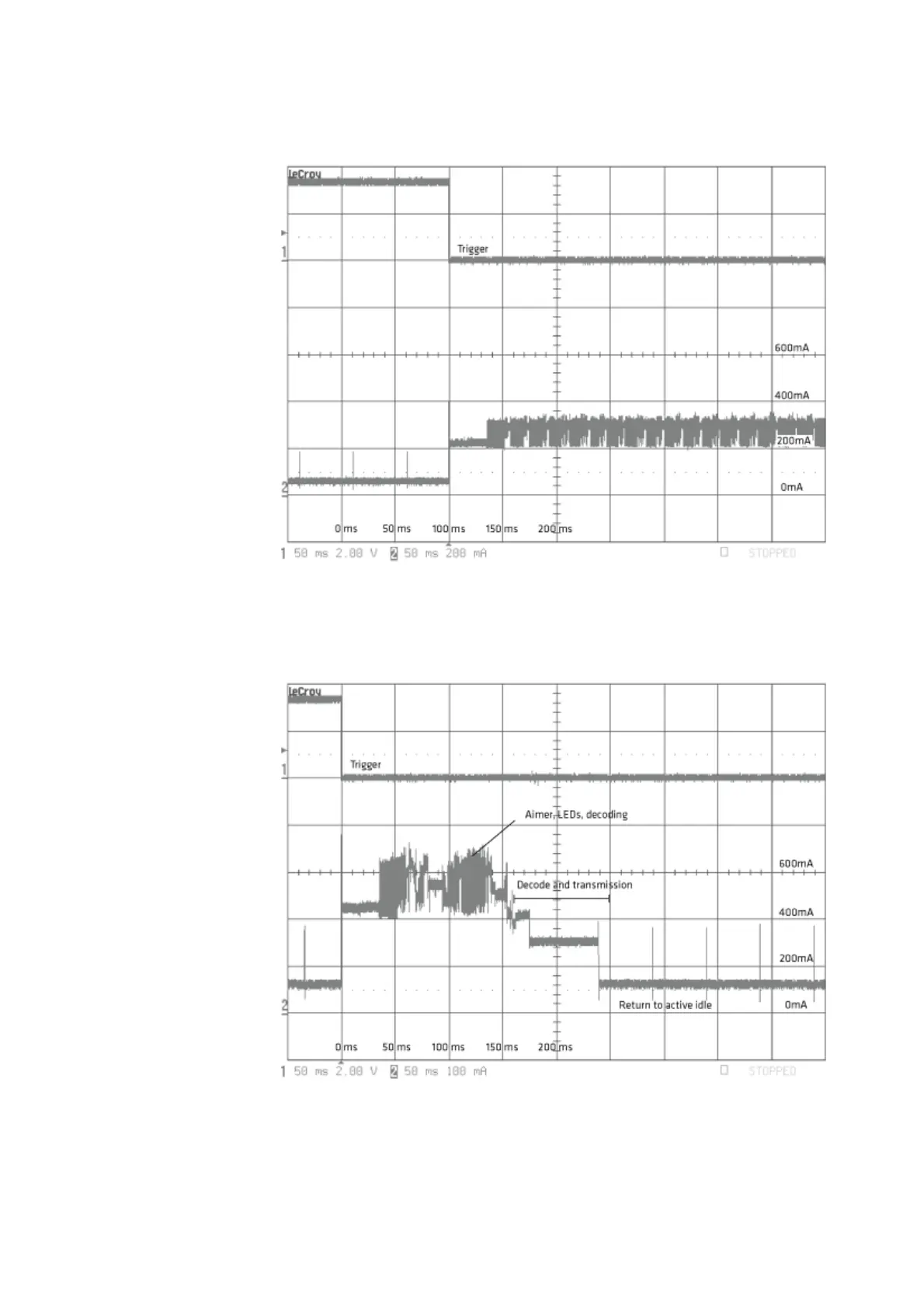

Active Idle to Scan Inrush Current

EA30 + ED40 Active Idle to Scan Inrush Current (RS-232): Trigger pulled low or trigger

pressed to initiate a scan.

Scanning Current

EA30 + ED40 Scanning Current (RS-232)
