Intermec ED40 - Active Idle to Scan Inrush Current; Power-Up (VCC) Inrush Current to Active Idle

Appendix A — EA11 Imager
ED40 Decode Board Integration Guide 71
Power-Up (Vcc) Inrush Current to Active Idle

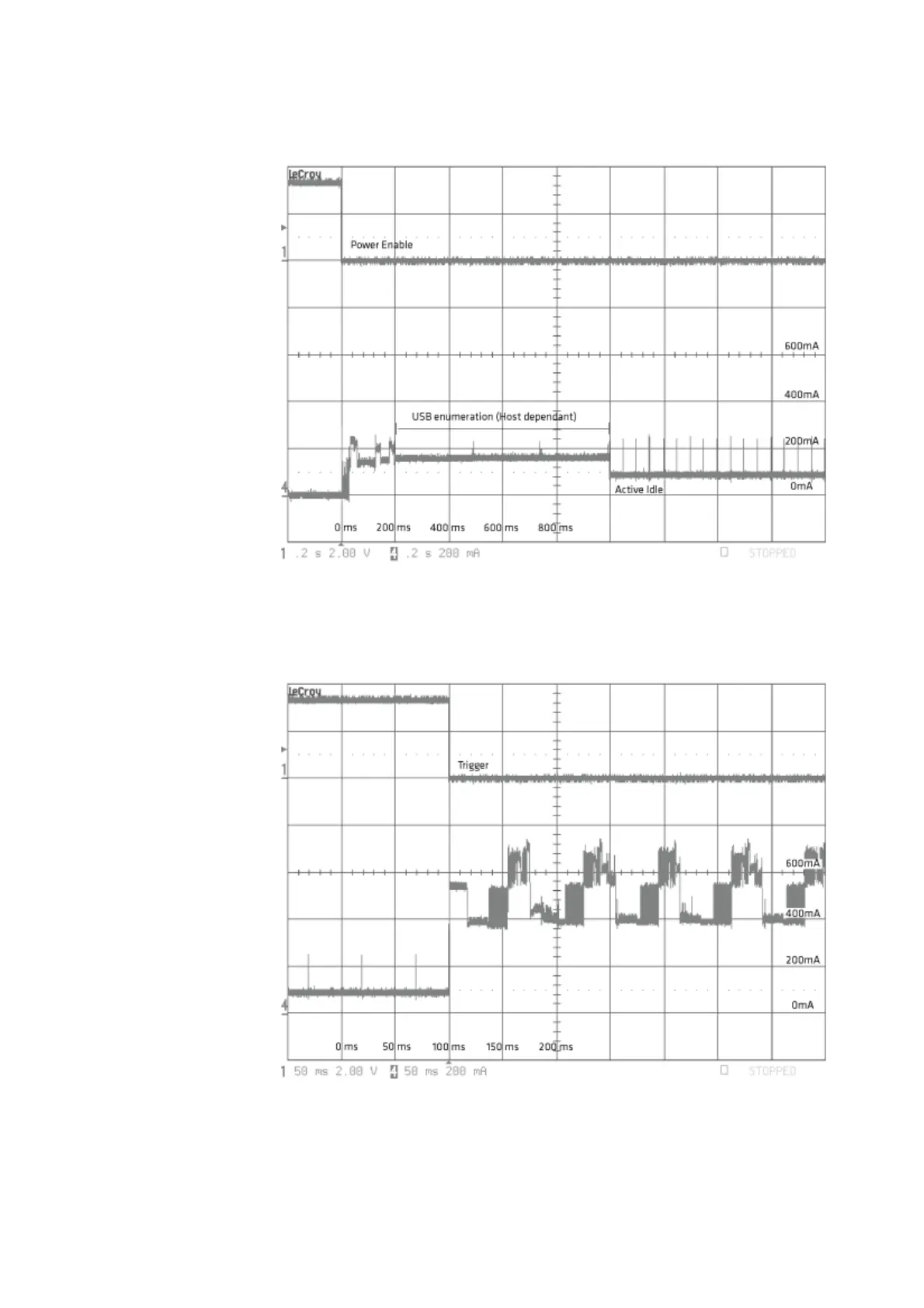

EA11 + ED40 Power-Up (Vcc) Inrush Current to Active Idle (USB): Power enable low, trigger
high.
Active Idle to Scan Inrush Current
EA11 + ED40 Active Idle to Scan Inrush Current (USB): Trigger pulled low or trigger pressed
to initiate a scan.
