Intermec ED40 - Power-Up (VCC) Inrush Current to Active Idle; Power-Up with Power Enable Inrush Current

Appendix C — EA21 Imager
ED40 Decode Board Integration Guide 105

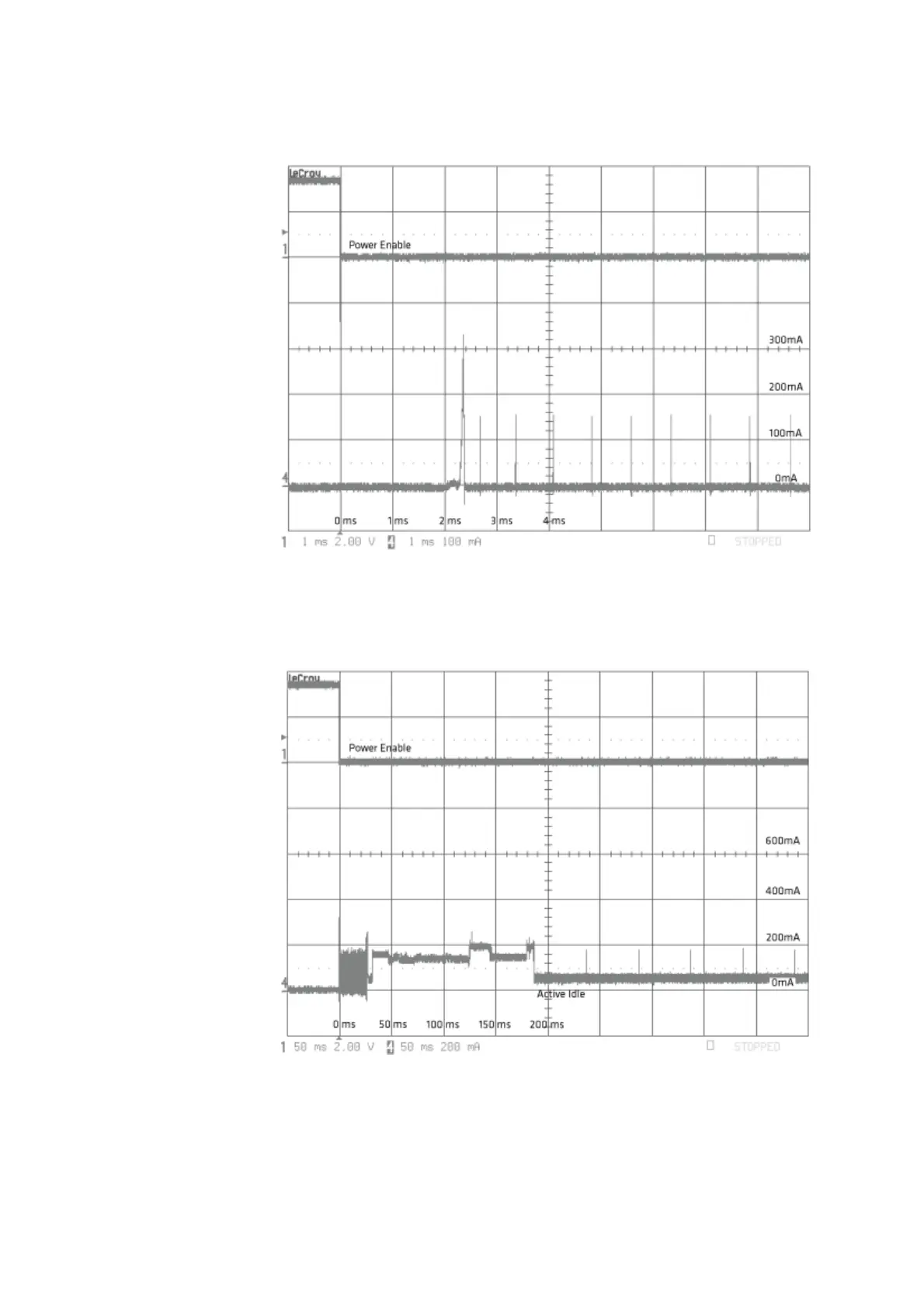

Power-Up with Power Enable Inrush Current
EA21 + ED40 Power-Up with power enable Inrush Current (RS-232): Power enable switched
from high to low.
Power-Up (Vcc) Inrush Current to Active Idle
EA21 + ED40 Power-Up (Vcc) Inrush Current to Active Idle (RS-232): Power enable low,
trigger high.
