Appendix D — EA30 Imager
ED40 Decode Board Integration Guide 127

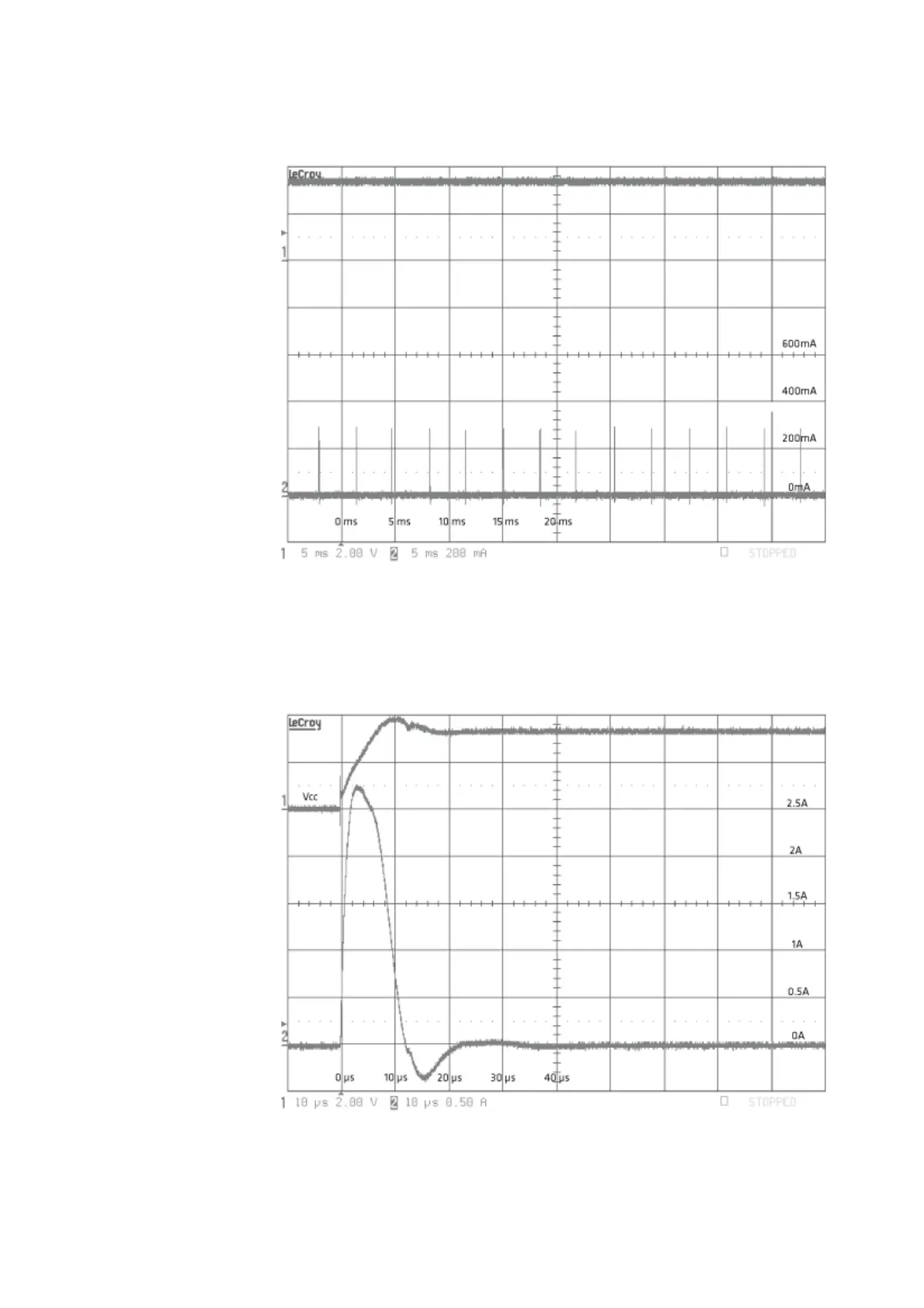

Hibernate Current
EA30 + ED40 Hibernate Current 5RS-232)
Using a USB Cable
Power-Up with Vcc Inrush Current
EA30 + ED40 Power-Up with Vcc Inrush Current (USB): Power enable and trigger low.
